1. Multipass && K3s && k9s

1.1 Multipass说明

Multipass是一个轻量级的可以用于开启Ubuntu虚拟机的命令行工具，你可以把它当做一个无图形界面的Virtual Box或者Parallels Desktop。在mac上可以通过brew安装，命令为

brew install --cask multipass

安装完成后执行multipass version，输出如下结果说明安装成功

~ ❯ multipass version                                                                                20:45:29
multipass   1.8.1+mac
multipassd  1.8.1+mac

Multipass常见指令如下：

Launch an instance (by default you get the current Ubuntu LTS)

multipass launch --name foo

Run commands in that instance, try running bash (logout or ctrl-d to quit)

multipass exec foo -- lsb_release -a

Pass a cloud-init metadata file to an instance on launch. See using cloud-init with multipass for more details

multipass launch -n bar --cloud-init cloud-config.yaml

See your instances

multipass list

Stop and start instances

multipass stop foo bar
multipass start foo

Clean up what you don’t need

multipass delete bar
multipass purge

Find alternate images to launch with multipass

multipass find

Get help

multipass help
multipass help <command>

1.2 K3s

k3s用于快速搭建k8s集群，注意这里k3s不是安装到mac上的而是安装到multipass创建的Ubuntu实例中，常用k3s安装脚本如下

curl -sfL https://get.k3s.io | sh -

一般来说国内访问可能失败，导致无法拉取需要资源，所以可以使用国内镜像源

curl -sfL http://rancher-mirror.cnrancher.com/k3s/k3s-install.sh | INSTALL_K3S_MIRROR=cn sh -

k3s常见环境变量如下

Environment Variable	Description
`INSTALL_K3S_SKIP_DOWNLOAD`	如果设置为 “true “将不会下载 K3s 的哈希值或二进制。
`INSTALL_K3S_SYMLINK`	默认情况下，如果路径中不存在命令，将为 kubectl、crictl 和 ctr 二进制文件创建符号链接。如果设置为’skip’将不会创建符号链接，而’force’将覆盖。
`INSTALL_K3S_SKIP_ENABLE`	如果设置为 “true”，将不启用或启动 K3s 服务。
`INSTALL_K3S_SKIP_START`	如果设置为 “true “将不会启动 K3s 服务。
`INSTALL_K3S_VERSION`	从 Github 下载 K3s 的版本。如果没有指定，将尝试从"stable"频道下载。
`INSTALL_K3S_BIN_DIR`	安装 K3s 二进制文件、链接和卸载脚本的目录，或者使用`/usr/local/bin`作为默认目录。
`INSTALL_K3S_BIN_DIR_READ_ONLY`	如果设置为 true 将不会把文件写入`INSTALL_K3S_BIN_DIR`，强制设置`INSTALL_K3S_SKIP_DOWNLOAD=true`。
`INSTALL_K3S_SYSTEMD_DIR`	安装 systemd 服务和环境文件的目录，或者使用`/etc/systemd/system`作为默认目录。
`INSTALL_K3S_EXEC`	带有标志的命令，用于在服务中启动 K3s。如果未指定命令，并且设置了`K3S_URL`，它将默认为“agent”。如果未设置`K3S_URL`，它将默认为“server”。要获得帮助，请参考此示例。
`INSTALL_K3S_NAME`	要创建的 systemd 服务名称，如果以服务器方式运行 k3s，则默认为’k3s’；如果以 agent 方式运行 k3s，则默认为’k3s-agent’。如果指定了服务名，则服务名将以’k3s-‘为前缀。
`INSTALL_K3S_TYPE`	要创建的 systemd 服务类型，如果没有指定，将默认使用 K3s exec 命令。
`INSTALL_K3S_SELINUX_WARN`	如果设置为 true，则在没有找到 k3s-selinux 策略的情况下将继续。
`INSTALL_K3S_SKIP_SELINUX_RPM`	如果设置为 “true “将跳过 k3s RPM 的自动安装。
`INSTALL_K3S_CHANNEL_URL`	用于获取 K3s 下载网址的频道 URL。默认为 https://update.k3s.io/v1-release/channels 。
`INSTALL_K3S_CHANNEL`	用于获取 K3s 下载 URL 的通道。默认值为 “stable”。选项包括：`stable`, `latest`, `testing`。
`K3S_CONFIG_FILE`	指定配置文件的位置。默认目录为`/etc/rancher/k3s/config.yaml`。
`K3S_TOKEN`	用于将 server 或 agent 加入集群的共享 secret。
`K3S_TOKEN_FILE`	指定 `cluster-secret`,`token` 的文件目录。

1.3 multipass-k3s脚本

k3s cluster on multipass instances给出了脚本，可以直接利用multipass和k3s创建k8s集群，我做了一些修改，比如替换了国内用的镜像源、使用2个slave节点、修改内存之类

#!/usr/bin/env bash

# Configure your settings
# Name for the cluster/configuration files
NAME="demo-cluster"
# Ubuntu image to use (xenial/bionic)
IMAGE="focal"
# How many additional server instances to create
SERVER_COUNT_MACHINE="0"
# How many agent instances to create
AGENT_COUNT_MACHINE="2"
# How many CPUs to allocate to each machine
SERVER_CPU_MACHINE="2"
AGENT_CPU_MACHINE="1"
# How much disk space to allocate to each machine
SERVER_DISK_MACHINE="5G"
AGENT_DISK_MACHINE="5G"
# How much memory to allocate to each machine
SERVER_MEMORY_MACHINE="2G"
AGENT_MEMORY_MACHINE="1G"
# Install channel to use (embedded etcd is fully supported starting with v1.19.5+k3s1)
CHANNEL=stable
# Preconfigured secret to join the cluster (or autogenerated if empty)
SERVER_TOKEN=""
# Preconfigured secret to join the cluster (or autogenerated if empty)
AGENT_TOKEN=""


## Nothing to change after this line
if [ -x "$(command -v multipass.exe)" > /dev/null 2>&1 ]; then
    # Windows
    MULTIPASSCMD="multipass.exe"
elif [ -x "$(command -v multipass)" > /dev/null 2>&1 ]; then
    # Linux/MacOS
    MULTIPASSCMD="multipass"
else
    echo "The multipass binary (multipass or multipass.exe) is not available or not in your \$PATH"
    exit 1
fi

if [ -z $SERVER_TOKEN ]; then
    SERVER_TOKEN=$(cat /dev/urandom | base64 | tr -dc 'a-zA-Z0-9' | fold -w 20 | head -n 1 | tr '[:upper:]' '[:lower:]')
    echo "No server token given, generated server token: ${SERVER_TOKEN}"
fi

if [ -z $AGENT_TOKEN ]; then
    AGENT_TOKEN=$(cat /dev/urandom | base64 | tr -dc 'a-zA-Z0-9' | fold -w 20 | head -n 1 | tr '[:upper:]' '[:lower:]')
    echo "No agent token given, generated agent token: ${AGENT_TOKEN}"
fi

# Check if name is given or create random string
if [ -z $NAME ]; then
    NAME=$(cat /dev/urandom | base64 | tr -dc 'a-zA-Z0-9' | fold -w 6 | head -n 1 | tr '[:upper:]' '[:lower:]')
    echo "No name given, generated name: ${NAME}"
fi

echo "Creating cluster ${NAME} with $(( $SERVER_COUNT_MACHINE + 1 )) server(s) and ${AGENT_COUNT_MACHINE} agent(s)"

# Prepare cloud-init
# Cloud init template
read -r -d '' SERVER_INIT_CLOUDINIT_TEMPLATE << EOM
#cloud-config

runcmd:
 - '\curl -sfL http://rancher-mirror.cnrancher.com/k3s/k3s-install.sh | INSTALL_K3S_MIRROR=cn INSTALL_K3S_CHANNEL=$CHANNEL K3S_TOKEN=$SERVER_TOKEN K3S_AGENT_TOKEN=$AGENT_TOKEN INSTALL_K3S_EXEC="server --cluster-init" K3S_KUBECONFIG_MODE=644 sh -'
EOM

echo "$SERVER_INIT_CLOUDINIT_TEMPLATE" > "${NAME}-init-cloud-init.yaml"
echo "Cloud-init is created at ${NAME}-init-cloud-init.yaml"

echo "Creating initial server instance: k3s-server-${NAME}"

echo "Running $MULTIPASSCMD launch --cpus $SERVER_CPU_MACHINE --disk $SERVER_DISK_MACHINE --mem $SERVER_MEMORY_MACHINE $IMAGE --name k3s-server-$NAME --cloud-init ${NAME}-init-cloud-init.yaml"
$MULTIPASSCMD launch --cpus $SERVER_CPU_MACHINE --disk $SERVER_DISK_MACHINE --mem $SERVER_MEMORY_MACHINE $IMAGE --name k3s-server-$NAME --cloud-init "${NAME}-init-cloud-init.yaml"
if [ $? -ne 0 ]; then
    echo "There was an error launching the instance"
    exit 1
fi

echo "Checking for Node being Ready on k3s-server-${NAME}"
$MULTIPASSCMD exec k3s-server-$NAME -- /bin/bash -c 'while [[ $(sudo k3s kubectl get nodes --no-headers 2>/dev/null | grep -c -v "NotReady") -eq 0 ]]; do sleep 2; done'
echo "Node is Ready on k3s-server-${NAME}"

# Retrieve info to join agent to cluster
SERVER_IP=$($MULTIPASSCMD info k3s-server-$NAME | grep IPv4 | awk '{ print $2 }')
URL="https://$(echo $SERVER_IP | sed -e 's/[[:space:]]//g'):6443"

# Create additional servers
if [ "${SERVER_COUNT_MACHINE}" -gt 0 ]; then
    read -r -d '' SERVER_CLOUDINIT_TEMPLATE << EOM
#cloud-config

runcmd:
 - '\curl -sfL http://rancher-mirror.cnrancher.com/k3s/k3s-install.sh | INSTALL_K3S_MIRROR=cn INSTALL_K3S_CHANNEL=$CHANNEL K3S_TOKEN=$SERVER_TOKEN K3S_AGENT_TOKEN=$AGENT_TOKEN INSTALL_K3S_EXEC="server --server $URL" K3S_KUBECONFIG_MODE=644 sh -'
EOM

    echo "$SERVER_CLOUDINIT_TEMPLATE" > "${NAME}-cloud-init.yaml"

    echo "Creating ${SERVER_COUNT_MACHINE} additional server instances"
    for i in $(eval echo "{1..$SERVER_COUNT_MACHINE}"); do
        echo "Running $MULTIPASSCMD launch --cpus $SERVER_CPU_MACHINE --disk $SERVER_DISK_MACHINE --mem $SERVER_MEMORY_MACHINE $IMAGE --name k3s-server-$NAME-$i --cloud-init ${NAME}-cloud-init.yaml"
        $MULTIPASSCMD launch --cpus $SERVER_CPU_MACHINE --disk $SERVER_DISK_MACHINE --mem $SERVER_MEMORY_MACHINE $IMAGE --name k3s-server-$NAME-$i --cloud-init "${NAME}-cloud-init.yaml"
        if [ $? -ne 0 ]; then
            echo "There was an error launching the instance"
            exit 1
        fi

        echo "Checking for Node being Ready on k3s-server-${NAME}"
        $MULTIPASSCMD exec k3s-server-$NAME-$i -- /bin/bash -c 'while [[ $(sudo k3s kubectl get nodes --no-headers 2>/dev/null | grep -c -v "NotReady") -eq 0 ]]; do sleep 2; done'
        echo "Node is Ready on k3s-server-${NAME}-${i}"
    done
fi

if [ "${AGENT_COUNT_MACHINE}" -gt 0 ]; then
    # Prepare agent cloud-init
    # Cloud init template
    read -r -d '' AGENT_CLOUDINIT_TEMPLATE << EOM
#cloud-config

runcmd:
 - '\curl -sfL http://rancher-mirror.cnrancher.com/k3s/k3s-install.sh | INSTALL_K3S_MIRROR=cn INSTALL_K3S_CHANNEL=$CHANNEL K3S_TOKEN=$AGENT_TOKEN K3S_URL=$URL sh -'
EOM

    echo "$AGENT_CLOUDINIT_TEMPLATE" > "${NAME}-agent-cloud-init.yaml"
    echo "Cloud-init is created at ${NAME}-agent-cloud-init.yaml"

    for i in $(eval echo "{1..$AGENT_COUNT_MACHINE}"); do
        echo "Running $MULTIPASSCMD launch --cpus $AGENT_CPU_MACHINE --disk $AGENT_DISK_MACHINE --mem $AGENT_MEMORY_MACHINE $IMAGE --name k3s-agent-$NAME-$i --cloud-init ${NAME}-agent-cloud-init.yaml"
        $MULTIPASSCMD launch --cpus $AGENT_CPU_MACHINE --disk $AGENT_DISK_MACHINE --mem $AGENT_MEMORY_MACHINE $IMAGE --name k3s-agent-$NAME-$i --cloud-init "${NAME}-agent-cloud-init.yaml"
        if [ $? -ne 0 ]; then
            echo "There was an error launching the instance"
            exit 1
       fi
        echo "Checking for Node k3s-agent-$NAME-$i being registered"
        $MULTIPASSCMD exec k3s-server-$NAME -- bash -c "until sudo k3s kubectl get nodes --no-headers | grep -c k3s-agent-$NAME-$i >/dev/null; do sleep 2; done"
        echo "Checking for Node k3s-agent-$NAME-$i being Ready"
        $MULTIPASSCMD exec k3s-server-$NAME -- bash -c "until sudo k3s kubectl get nodes --no-headers | grep k3s-agent-$NAME-$i | grep -c -v NotReady >/dev/null; do sleep 2; done"
        echo "Node k3s-agent-$NAME-$i is Ready on k3s-server-${NAME}"
    done
fi

$MULTIPASSCMD copy-files k3s-server-$NAME:/etc/rancher/k3s/k3s.yaml $NAME-kubeconfig-orig.yaml
sed "/^[[:space:]]*server:/ s_:.*_: \"https://$(echo $SERVER_IP | sed -e 's/[[:space:]]//g'):6443\"_" $NAME-kubeconfig-orig.yaml > $NAME-kubeconfig.yaml

echo "k3s setup finished"
$MULTIPASSCMD exec k3s-server-$NAME -- sudo k3s kubectl get nodes
echo "You can now use the following command to connect to your cluster"
echo "$MULTIPASSCMD exec k3s-server-${NAME} -- sudo k3s kubectl get nodes"
echo "Or use kubectl directly"
echo "kubectl --kubeconfig ${NAME}-kubeconfig.yaml get nodes"

1.4 k9s

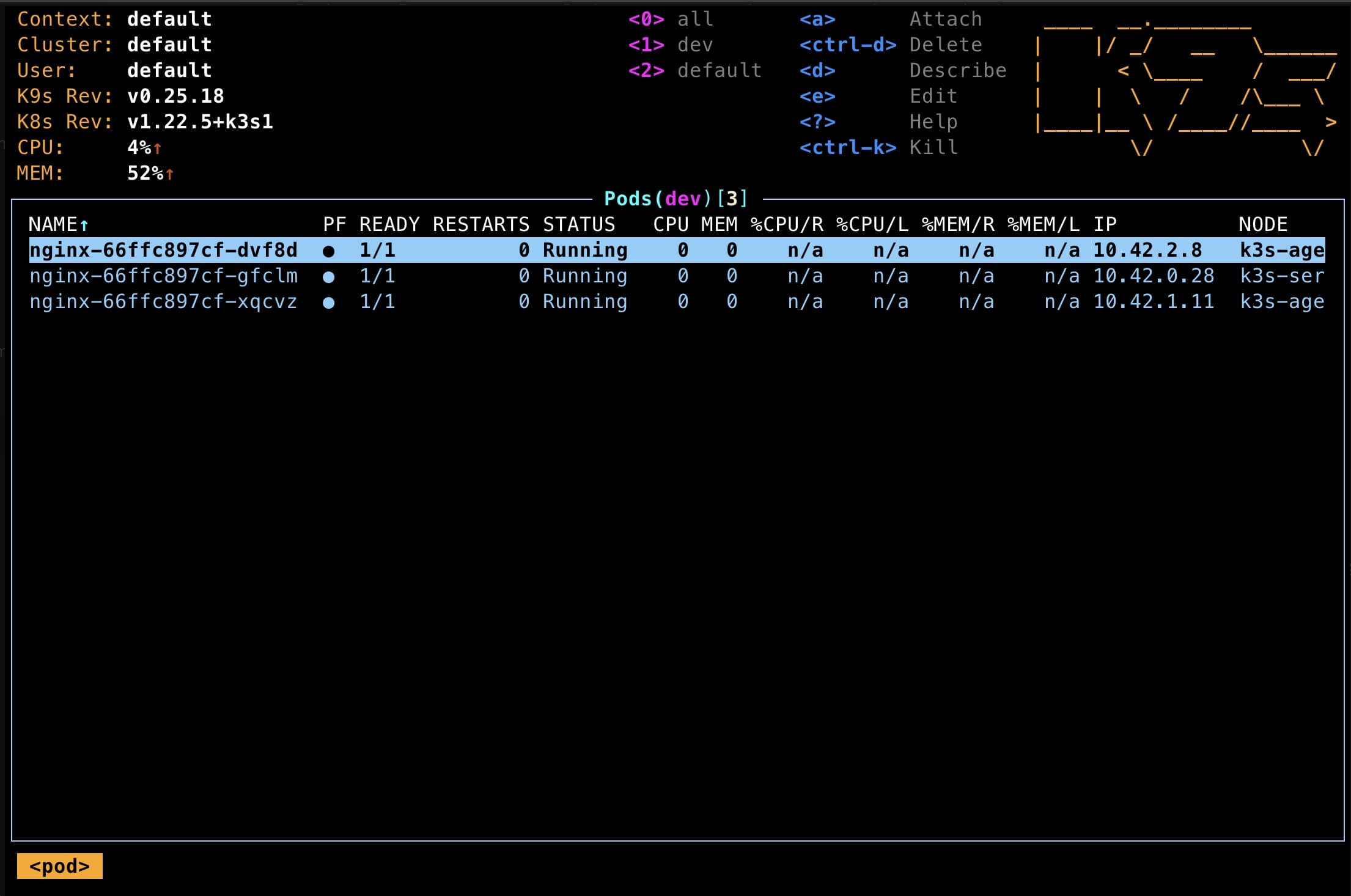

K9s 提供了一个与 K8s 集群交互的终端 UI，用于简化导航、观察以及管理应用程序。K9s 会持续监控 K8s 的变化，并提供后续命令与所观察到的资源进行交互。可以利用如下GUI管理k8s

Screen Shot 2022-01-06 at 19.43.21

1.5 一些问题

brew无法安装cask，超时之类，可以使用中科大的brew源；
在启用某些VPN软件时，multipass无法拉取镜像，导致无法创建Ubuntu实例或者无法安装k3s，只能关闭VPN软件；
k3s启动失败，一般需要使用国内镜像源。

2. 安装与测试

步骤如下：

Brew安装multipass、k9s和kubectl-cli；
创建k3s-launch.sh，并复制粘贴上面的脚本内容，需要自行修改以适配自己的环境；

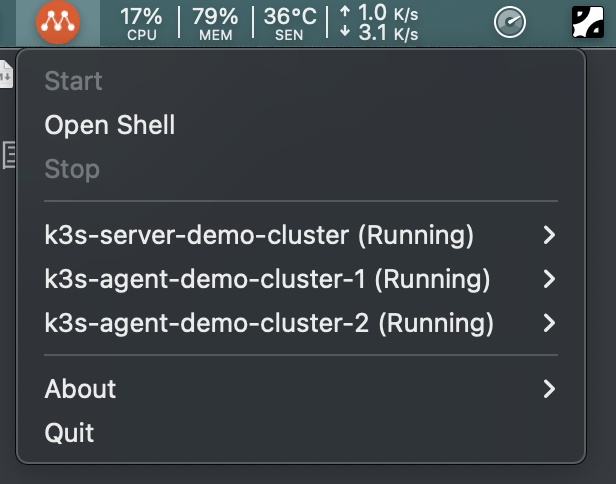

运行bash k3s-launch.sh，等待集群部署，脚本执行成功后可以看到multipass多了3个实例，不带数字的是master节点，其他是slave节点，而且目录下多了几个文件；

Screen Shot 2022-01-02 at 21.09.22

~/Projects/k3s ❯ ll                                                                                  21:13:40
total 56
-rw-r--r--  1 tao  staff   216B Jan  2 14:05 demo-cluster-agent-cloud-init.yaml
-rw-r--r--  1 tao  staff   283B Jan  2 14:04 demo-cluster-init-cloud-init.yaml
-rw-r--r--  1 tao  staff   2.9K Jan  2 14:07 demo-cluster-kubeconfig-orig.yaml
-rw-r--r--  1 tao  staff   2.9K Jan  2 14:07 demo-cluster-kubeconfig.yaml
-rw-r--r--@ 1 tao  staff   7.0K Jan  2 14:04 k3s-launch.sh

创建一个deploy-nginx.yaml，内容如下：

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
  namespace: dev
spec:
  replicas: 3
  selector:
    matchLabels:
      run: nginx
  template:
    metadata:
      labels:
        run: nginx
    spec:
      containers:
      - image: nginx:1.17.1
        name: nginx
        ports:
        - containerPort: 80
          protocol: TCP

使用kubectl控制集群，运行如下命令

# get nodes查看节点是否存活
kubectl --kubeconfig demo-cluster-kubeconfig.yaml get nodes

NAME                       STATUS   ROLES                       AGE     VERSION
k3s-agent-demo-cluster-1   Ready    <none>                      7h10m   v1.22.5+k3s1
k3s-agent-demo-cluster-2   Ready    <none>                      7h9m    v1.22.5+k3s1
k3s-server-demo-cluster    Ready    control-plane,etcd,master   7h11m   v1.22.5+k3s1

# create namespace dev创建dev命名空间
kubectl --kubeconfig demo-cluster-kubeconfig.yaml create namespace dev

namespace/dev created

# 创建测试pod
kubectl --kubeconfig demo-cluster-kubeconfig.yaml create -f deploy-nginx.yaml

deployment.apps/nginx created

# 查看pod状态
kubectl --kubeconfig demo-cluster-kubeconfig.yaml get pods -n dev

NAME                     READY   STATUS    RESTARTS   AGE
nginx-66ffc897cf-55b6d   1/1     Running   0          53s
nginx-66ffc897cf-d5r29   1/1     Running   0          53s
nginx-66ffc897cf-vfpkg   1/1     Running   0          53s

# 创建暴露给外部的Service
kubectl --kubeconfig demo-cluster-kubeconfig.yaml expose deploy nginx --name=svc-nginx --type=NodePort --port=80 --target-port=80 -n dev

service/svc-nginx exposed

# 查看Service状态和端口号映射
kubectl --kubeconfig demo-cluster-kubeconfig.yaml get svc svc-nginx -n dev -o wide

NAME        TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE   SELECTOR
svc-nginx   NodePort   10.43.227.135   <none>        80:30355/TCP   25s   run=nginx

# 查看master节点ip
multipass list

Name                      State             IPv4             Image
k3s-agent-demo-cluster-1  Running           192.168.64.16    Ubuntu 20.04 LTS
                                            10.42.1.0
                                            10.42.1.1
k3s-agent-demo-cluster-2  Running           192.168.64.17    Ubuntu 20.04 LTS
                                            10.42.2.0
                                            10.42.2.1
k3s-server-demo-cluster   Running           192.168.64.15    Ubuntu 20.04 LTS
                                            10.42.0.0
                                            10.42.0.1

# 访问 192.168.64.15:30355，能够输出nginx信息
curl 192.168.64.15:30355

<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

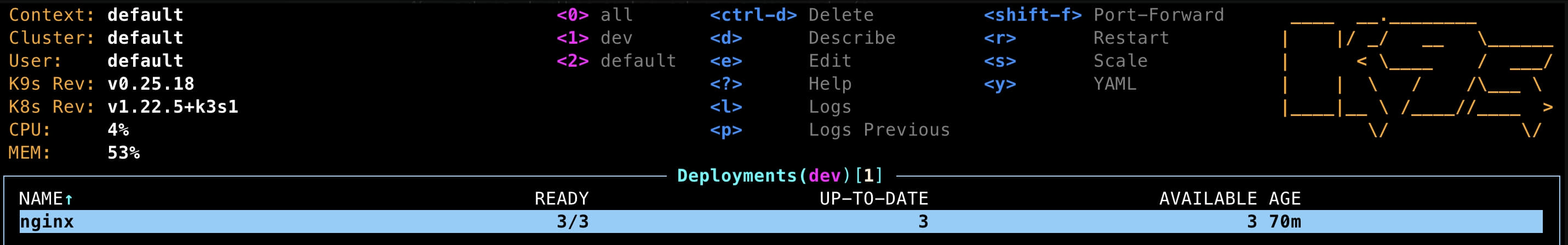

利用k9s查看k8s集群状态，详细玩法可以去看k9s官网

k9s --kubeconfig demo-cluster-kubeconfig.yaml -n dev

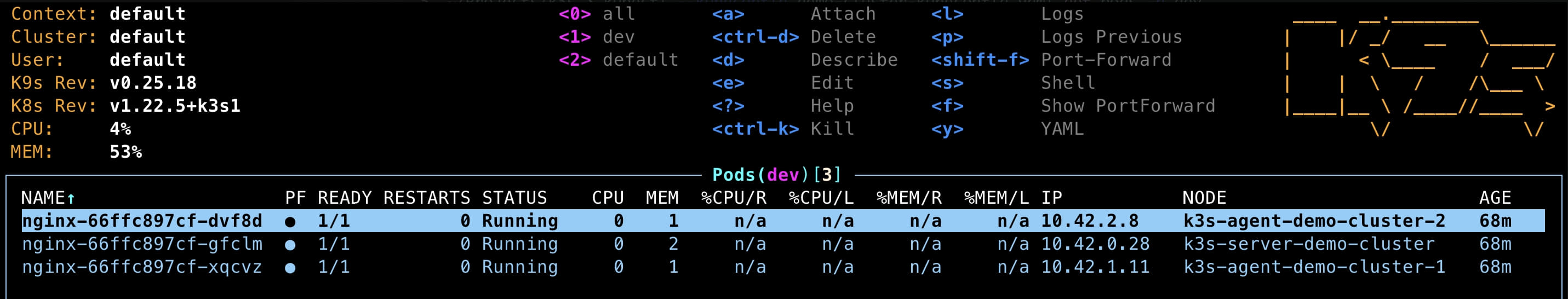

pod状态

Screen Shot 2022-01-06 at 20.51.53

service状态

Screen Shot 2022-01-06 at 20.52.04

deploy状态

Screen Shot 2022-01-06 at 20.53.11

1. Multipass && K3s && k9s#

1.1 Multipass说明#

1.2 K3s#

1.3 multipass-k3s脚本#

1.4 k9s#

1.5 一些问题#

2. 安装与测试#

参考#
