BottomSheetDialog，顾名思义就是从界面底部往上出现的Dialog，它是Material Design的控件之一，目前在Material Components库中。
1. 准备工作
Google推出的Material Components库包括了很多常用的控件，我们只需要直接用这些控件就可以实现很多复杂的功能或界面，但是在使用之前还需要一些准备工作，大致在Getting started with Material Components for Android也给出了，我这里简要描述一下：
- 首先使是依赖（建议更新项目到androidx再继续），需要在
build.gradle中加入Google’s Maven Repositorygoogle()，然后加入库；
allprojects {
repositories {
google()
jcenter()
}
}
dependencies {
// ...
// 目前最新版为1.1.0-alpha07，有部分控件还是存在Bug
implementation 'com.google.android.material:material:1.1.0-alpha07'
// ...
}
- 其次是
compileSdkVersion需要在28或以上才能使用Material控件； - 然后需要使用或继承
AppCompatActivity，AppCompatActivity是专门为Material控件设计的Activity，如果不能继承则需要使用AppCompatDelegate； - 最后是需要修改
AppTheme，在AndroidManifest.xml里面修改主题，需要继承自Material Components themes，具体有哪些可以看上面给的地址，如果暂时不允许修改AppTheme，可以使用Material Components Bridge themes，这里的区别在于使用Material Components themes可能会导致你原来的应用中某些布局颜色UI发生改变，这时候需要重新修改一些资源文件；如果使用Bridge themes则不会修改原来应用的布局颜色UI等，却可以使用Material组件。
<style name="AppTheme" parent="Theme.MaterialComponents.NoActionBar.Bridge">
<!-- Customize your theme here. -->
<item name="colorPrimary">@color/colorPrimary</item>
<item name="colorPrimaryDark">@color/colorPrimaryDark</item>
<item name="colorAccent">@color/colorAccent</item>
</style>
到这里，准备工作基本完成，可以进行下一步使用Material组件了。
2. BottomSheetDialog使用
根据官网说明，BottomSheetDialog有两种使用方式（这里很多博客没有说明就直接给代码了），一种是Persistent，另一种是Modal，简而言之就是前者是固定的BottomSheetDialog，后者是动态调用的。
2.1 Persistent BottomSheetDialog

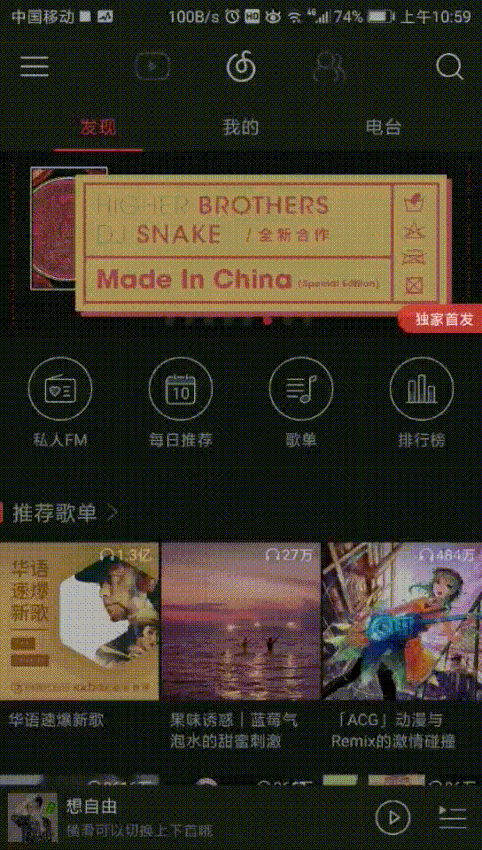

设想一个使用场景，某个界面必定包含BottomSheetDialog，需要靠它实现其他功能的选择，举个例子，知乎的评论就是依靠BottomSheetDialog来实现的（一个东西看起来像鸭子，吃起来也像鸭子，那么它就是鸭子），而且有很明显的特征：在回答界面必定存在这个评论功能，那么我们可以将它视为Persistent固定场景，此时实现BottomSheetDialog的方式是使用BottomSheetBehavior，而不是new BottomSheetDialog()，实例代码如下：
- 首先是activity的布局文件
activity_second.xml
<?xml version="1.0" encoding="utf-8"?>
<!-- 注意要使用BottomSheetBehavior，则必须使用CoordinatorLayout作为父布局，而且需要xmlns:app -->
<androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<Button
android:id="@+id/btn_show"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:text="Show" />
</LinearLayout>
<!-- BottomSheetBehavior需要一个寄主，可以是LinearLayout也可以是其他，这个layout就是弹出的dialog布局，
同时需要几个属性：
app:behavior_hideable="true"否则BottomSheetDialog不会收起来
app:behavior_peekHeight="300dp"设置BottomSheetDialog在STATE_COLLAPSED状态的高度，也可以不设置，这个会产生一种弹性收缩的效果，具体自行尝试
app:elevation="6dp"设置z轴高度，可以产生一种悬浮效果，可以不设置
app:layout_behavior="com.google.android.material.bottomsheet.BottomSheetBehavior"最重要的属性，简而言之就是让LinearLayout
的行为变成BottomSheetDialog的行为，这样我们就不需要实例化一个BottomSheetDialog，取而代之的是通过BottomSheetBehavior来实现，
需要注意的地方是，app:layout_behavior只能在CoordinatorLayout下直接子控件中使用，像这里的CoordinatorLayout->LinearLayout就可以
-->
<LinearLayout
android:id="@+id/bottom_sheet"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@color/white"
android:orientation="vertical"
app:behavior_hideable="true"
app:behavior_peekHeight="300dp"
app:elevation="6dp"
app:layout_behavior="com.google.android.material.bottomsheet.BottomSheetBehavior">
<!-- 这里随便加了几个子项，在BottomSheetBehavior布局下的子控件都是BottomSheetDialog一部分 -->
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<ImageView
style="@style/MenuIcon"
android:src="@drawable/ic_share_black_24dp" />
<TextView
style="@style/MenuText"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Share" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<ImageView
style="@style/MenuIcon"
android:src="@drawable/ic_cloud_upload_black_24dp" />
<TextView
style="@style/MenuText"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Upload" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<ImageView
style="@style/MenuIcon"
android:src="@drawable/ic_content_copy_black_24dp" />
<TextView
style="@style/MenuText"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Copy" />
</LinearLayout>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<ImageView
style="@style/MenuIcon"
android:src="@drawable/ic_print_black_24dp" />
<TextView
style="@style/MenuText"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Print" />
</LinearLayout>
</LinearLayout>
</androidx.coordinatorlayout.widget.CoordinatorLayout>
这里用了styles.xml减少重复代码
<style name="MenuIcon">
<item name="android:layout_height">30dp</item>
<item name="android:layout_width">30dp</item>
<item name="android:layout_margin">15dp</item>
</style>
<style name="MenuText">
<item name="android:layout_gravity">center_vertical</item>
<item name="android:layout_marginStart">30dp</item>
<item name="android:gravity">start</item>
<item name="android:textColor">#00574B</item>
<item name="android:textSize">20sp</item>
</style>
- 然后是activity的代码
SecondActivity.java
public class SecondActivity extends AppCompatActivity {
@Override
protected void onCreate(@Nullable Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_second);
// BottomSheetBehavior一共有5个状态：STATE_COLLAPSED/STATE_EXPANDED/STATE_DRAGGING/STATE_SETTLING/STATE_HIDDEN
// 当你的布局文件中BottomSheetBehavior控件高度大于设置behavior_peekHeight，则Dialog会产生三种位置，一个是隐藏STATE_HIDDEN，
// 另一个是STATE_EXPANDED即BottomSheetBehavior控件全部显示出来的位置，还有一个是介于前两者之间的STATE_COLLAPSED状态，
// 此时露出来的Dialog高度为behavior_peekHeight；
// 另一种情况是behavior_peekHeight大于BottomSheetBehavior控件高度，那么会产生一种弹性收缩的效果
BottomSheetBehavior bottomSheetBehavior = BottomSheetBehavior.from(findViewById(R.id.bottom_sheet));
bottomSheetBehavior.setState(BottomSheetBehavior.STATE_HIDDEN);
findViewById(R.id.btn_show).setOnClickListener(v -> {
// 这里通过判断当前状态来进行收缩和打开，与此同时Dialog支持直接滑动关闭
if (bottomSheetBehavior.getState() == BottomSheetBehavior.STATE_HIDDEN) {
bottomSheetBehavior.setState(BottomSheetBehavior.STATE_COLLAPSED);
} else if (bottomSheetBehavior.getState() == BottomSheetBehavior.STATE_COLLAPSED) {
bottomSheetBehavior.setState(BottomSheetBehavior.STATE_HIDDEN);
}
});
// 通过设置BottomSheetCallback来控制状态变化产生的其他效果，也可以控制滑动过程中产生其他效果
bottomSheetBehavior.setBottomSheetCallback(new BottomSheetBehavior.BottomSheetCallback() {
@Override
public void onStateChanged(@NonNull View bottomSheet, int newState) {
//拖动
}
@Override
public void onSlide(@NonNull View bottomSheet, float slideOffset) {
//状态变化
}
});
}
}
- 在设备屏幕旋转时BottomSheetDialog会消失，通过在
AndroidManifest.xml设置configChanges可以避免
<activity
android:name=".SecondActivity"
android:configChanges="orientation" />
至此，简单的通过BottomSheetBehavior实现BottomSheetDialog就结束了，更复杂的效果是添加RecyclerView到BottomSheetDialog 中，同时增加点击事件监听等等，接下来介绍如何动态使用BottomSheetDialog。
2.2 Modal BottomSheetDialog
如果你使用过AlertDialog那么就应该知道了，动态调用就是直接new一个出来，然后show一下就完事了，同理对BottomSheetDialog也成立，
因此不需要固定的BottomSheetBehavior，而直接new也分为两种方式，一个是new BottomSheetDialog()，另一个是new BottomSheetDialog()，
两者显示效果相同，但是后者通过fragment控制生命周期更合理，所以使用后者，简单使用的话只需要三步：
- 继承自BottomSheetDialogFragment；
- 重写onCreateView方法，加入你自定义的布局；
- 调用show方法，这里需要Activity.getSupportFragmentManager()。

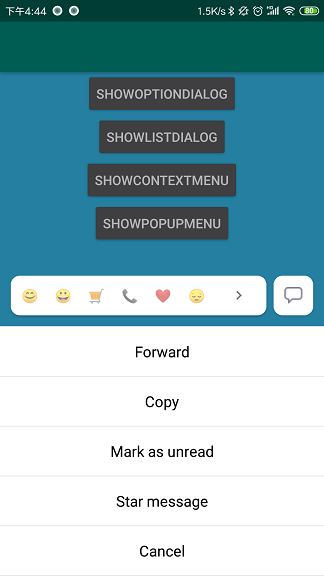

我这里实现一个相对复杂的布局，如上图所示，具体包括两部分，一个是header，header可以是一个自定义view，也可以将header隐藏，header与下面的Menu之间是透明的，下面的Menu通过RecyclerView控制选项数量，点击单个选项有水波纹效果，代码如下：
- 首先是Dialog的布局文件
dialog_option.xml，根据上面的描述就知道是一个RecyclerView
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/forget_psw_bottom_sheet_layout"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="vertical">
<androidx.recyclerview.widget.RecyclerView
android:id="@+id/menu_list"
android:layout_width="match_parent"
android:layout_height="wrap_content" />
</LinearLayout>
- 然后是需要实现这个Dialog为透明背景，这是因为header也在RecyclerView中，那么只有透明背景才可以实现header悬浮的效果，Dialog透明背景需要styles文件
<style name="SheetDialog" parent="Theme.Design.Light.BottomSheetDialog">
<!-- 关键属性是colorBackground，transparent可以是背景透明，但是这会导致一个问题，此处伏笔 -->
<item name="android:windowIsTranslucent">true</item>
<item name="android:windowContentOverlay">@null</item>
<item name="android:colorBackground">@android:color/transparent</item>
<item name="android:backgroundDimEnabled">true</item>
<item name="android:backgroundDimAmount">0.3</item>
<item name="android:windowFrame">@null</item>
<item name="android:windowIsFloating">true</item>
</style>
- 以及header的布局文件
card_layout.xml和Menu Item的布局文件menu_item.xml，header有圆角，可以用另一种Material组件实现CardView
<!-- card_layout.xml -->
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal"
android:padding="8dp">
<androidx.cardview.widget.CardView
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_margin="4dp"
android:layout_weight="1"
android:elevation="4dp"
app:cardCornerRadius="10dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@color/white"
android:orientation="horizontal"
android:padding="12dp">
<TextView
style="@style/Image"
android:text="@string/glass" />
<TextView
style="@style/Image"
android:text="@string/clap" />
<TextView
style="@style/Image"
android:text="@string/cry" />
<TextView
style="@style/Image"
android:text="@string/party" />
<TextView
style="@style/Image"
android:text="@string/heart" />
<TextView
style="@style/Image"
android:text="@string/thumb" />
<ImageView
style="@style/Image"
android:src="@drawable/ic_keyboard_arrow_right_black_24dp" />
</LinearLayout>
</androidx.cardview.widget.CardView>
<androidx.cardview.widget.CardView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_margin="4dp"
android:elevation="4dp"
app:cardCornerRadius="10dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@color/white"
android:orientation="horizontal"
android:padding="12dp">
<ImageView
android:layout_width="20dp"
android:layout_height="20dp"
android:layout_gravity="center"
android:src="@drawable/outline" />
</LinearLayout>
</androidx.cardview.widget.CardView>
</LinearLayout>
这里使用了strings的资源，通过Unicode表示表情符号
<resources>
<string name="thumb">😔</string>
<string name="heart">❤️</string>
<string name="party">📞</string>
<string name="cry">🛒</string>
<string name="clap">😀</string>
<string name="glass">😊</string>
</resources>
<!-- menu_item.xml -->
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<!-- 注意这里伏笔就来了，设置为透明背景的Dialog中，子控件也会是透明的，而且若对子控件的background
设置为某种颜色则无法产生水波纹效果，所以需要自定义@drawable/touch_bg -->
<TextView
android:id="@+id/menu_text"
style="@style/BottomDialog"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@drawable/touch_bg" />
</LinearLayout>
<style name="BottomDialog">
<item name="android:padding">16dp</item>
<item name="android:textSize">16sp</item>
<item name="android:textColor">@color/black</item>
<item name="android:gravity">center</item>
<item name="android:textStyle">normal</item>
</style>
<!-- touch_bg.xml -->
<?xml version="1.0" encoding="utf-8"?>
<!--Use an almost transparent color for the ripple itself-->
<ripple xmlns:android="http://schemas.android.com/apk/res/android"
android:color="#22000000">
<!--Use this to define the shape of the ripple effect (rectangle, oval, ring or line).
The color specified here isn't used anyway-->
<item android:id="@android:id/mask">
<shape android:shape="rectangle">
<solid android:color="#000000" />
</shape>
</item>
<!--This is the background for your button-->
<item>
<!--Use the shape you want here-->
<shape android:shape="rectangle">
<!--Use the solid tag to define the background color you want (here white)-->
<solid android:color="@color/white"/>
<!--Use the stroke tag for a border-->
<stroke android:width="1dp" android:color="@color/white"/>
</shape>
</item>
</ripple>
- 接下来就是主要java代码了，包括
MenuBottomSheetDialog.java和MenuListAdapter.java，前者是我们最终调用的Dialog，后者是RecyclerView的Adapter，以及自定义一个Menu Item的实体类OptionMenuItem.java用于保存信息
public class OptionMenuItem {
// label表示选项的名称最终会显示在Dialog，action表示该选项的行为，这里可以自定义增加其他内容，
// 比如增加一个state属性表示该选项是否可用等等，如不可用，则颜色为灰色且不可点击，不过我没加
private String label;
private int action;
public OptionMenuItem(String label, int action) {
this.label = label;
this.action = action;
}
public String getLabel() {
return label;
}
public void setLabel(String label) {
this.label = label;
}
public int getAction() {
return action;
}
public void setAction(int action) {
this.action = action;
}
}
public class MenuBottomSheetDialog extends BottomSheetDialogFragment {
private static final String TAG = MenuBottomSheetDialog.class.getSimpleName();
private RecyclerView recyclerView;
private MenuListAdapter adapter;
// 这里还加了一个参数hasItemDecoration用于控制是否显示选项之间的分割线
private Boolean hasItemDecoration = true;
private Context context;
private static MenuBottomSheetDialog newInstance(Builder builder) {
MenuBottomSheetDialog fragment = new MenuBottomSheetDialog();
// Bundle bundle = new Bundle();
// fragment.setArguments(bundle);
fragment.setHasItemDecoration(builder.hasItemDecoration);
fragment.setAdapter(builder.adapter);
fragment.setContext(builder.context);
return fragment;
}
@NonNull
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
// R.style.SheetDialog 透明背景需要在onCreateDialog方法引入
return new BottomSheetDialog(context, R.style.SheetDialog);
}
@Nullable
@Override
public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container,
@Nullable Bundle savedInstanceState) {
// 在onCreateView引入定义的dialog布局
return inflater.inflate(R.layout.dialog_option, container, false);
}
@Override
public void onViewCreated(@NonNull View view, @Nullable Bundle savedInstanceState) {
super.onViewCreated(view, savedInstanceState);
// onViewCreated中进行初始化，这里就很简单的使用了RecyclerView
recyclerView = view.findViewById(R.id.menu_list);
recyclerView.setLayoutManager(new LinearLayoutManager(getContext()));
recyclerView.setAdapter(adapter);
if (hasItemDecoration) {
// DividerItemDecoration可以方便的加入到RecyclerView，形成分割线，布局文件在下面
DividerItemDecoration dec = new DividerItemDecoration(context, DividerItemDecoration.VERTICAL);
dec.setDrawable(getResources().getDrawable(R.drawable.divider_line));
recyclerView.addItemDecoration(dec);
}
}
// 最终我们通过show方法调用
public void show(FragmentManager fragmentManager) {
FragmentTransaction transaction = fragmentManager.beginTransaction();
Fragment prevFragment = fragmentManager.findFragmentByTag(TAG);
if (prevFragment != null) {
transaction.remove(prevFragment);
}
transaction.addToBackStack(null);
show(transaction, TAG);
}
// 这里因为参数可能会有很多，所以采用建造者模式实现
public static Builder builder(Context context) {
return new Builder(context);
}
public static class Builder {
// 建造者模式需要传入的参数有三个
private MenuListAdapter adapter;
private Boolean hasItemDecoration;
private Context context;
public Builder(Context context) {
this.context = context;
}
// 以下都是建造者模式可调用的方法
public Builder setAdapter(MenuListAdapter adapter) {
this.adapter = adapter;
return this;
}
public Builder setHasItemDecoration(Boolean hasItemDecoration) {
this.hasItemDecoration = hasItemDecoration;
return this;
}
public MenuBottomSheetDialog build() {
return newInstance(this);
}
public MenuBottomSheetDialog show(FragmentManager fragmentManager) {
MenuBottomSheetDialog dialog = build();
dialog.show(fragmentManager);
return dialog;
}
}
private void setAdapter(MenuListAdapter adapter) {
this.adapter = adapter;
}
private void setContext(Context context) {
this.context = context;
}
private void setHasItemDecoration(Boolean hasItemDecoration) {
this.hasItemDecoration = hasItemDecoration;
}
}
<!-- divider_line.xml -->
<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
<!--分割线左右边距-->
<item>
<shape>
<solid android:color="@color/split_line_grey" />
<size android:height="1dp" />
</shape>
</item>
</layer-list>
- 接下来是RecyclerView的Adapter文件
MenuListAdapter.java
public class MenuListAdapter extends RecyclerView.Adapter<RecyclerView.ViewHolder> {
// 通过hasHeader控制是否显示header，这里是通过MenuListAdapter传入的参数，没有用上面建造者模式
private Boolean hasHeader;
// 监听选项点击，这里我仅仅对选项做监听没有对header进行任何控制，所以header只是个没有灵魂的花瓶
private OnMenuItemClickListener onMenuClickListener;
// 传入的选项list
private List<OptionMenuItem> options;
// onCreateViewHolder判断是否为header的参数
public static final int VIEW_TYPE_HEADER = 0;
public static final int VIEW_TYPE_ITEM = 1;
public MenuListAdapter() {
this.options = new ArrayList<>();
}
public MenuListAdapter(List<OptionMenuItem> options) {
this.options = options;
}
@NonNull
@Override
public RecyclerView.ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
RecyclerView.ViewHolder viewHolder = null;
switch (viewType) {
// 这里也比较好理解，如果为header传入header的布局，如果为Menu Item则传入Item的布局
case VIEW_TYPE_HEADER:
viewHolder = new HeaderViewHolder(LayoutInflater.from(parent.getContext()).inflate(R.layout.card_layout, parent, false));
break;
case VIEW_TYPE_ITEM:
viewHolder = new MenuItemViewHolder(LayoutInflater.from(parent.getContext()).inflate(R.layout.menu_item, parent, false));
break;
}
return viewHolder;
}
@Override
public void onBindViewHolder(@NonNull RecyclerView.ViewHolder holder, int position) {
switch (holder.getItemViewType()) {
case VIEW_TYPE_HEADER:
// todo add header view listener
break;
case VIEW_TYPE_ITEM:
// 注意这里positon与header存在与否的关系，然后通过接口把点击事件传出去
OptionMenuItem menuItem = options.get(hasHeader ? position - 1 : position);
((MenuItemViewHolder) holder).bind(menuItem);
holder.itemView.setOnClickListener(v -> {
Log.i("aaa", "click");
if (onMenuClickListener != null) {
onMenuClickListener.onMenuClick(holder.itemView, menuItem.getAction());
}
});
break;
}
}
@Override
public int getItemViewType(int position) {
// 在getItemViewType定义type，从而在前面两个方法中获取
if (hasHeader) {
if (position == 0) {
return VIEW_TYPE_HEADER;
}
}
return VIEW_TYPE_ITEM;
}
@Override
public int getItemCount() {
// 同理options.size()与hasHeader的关系
return hasHeader ?
(options.size() + 1) : options.size();
}
class MenuItemViewHolder extends RecyclerView.ViewHolder {
TextView text;
// 正如我在Menu Item实体类中所设想的，我们可以在这里根据state进行额外的控制
public MenuItemViewHolder(@NonNull View itemView) {
super(itemView);
text = itemView.findViewById(R.id.menu_text);
}
private void bind(OptionMenuItem optionMenuItem) {
text.setText(optionMenuItem.getLabel());
}
}
class HeaderViewHolder extends RecyclerView.ViewHolder {
public HeaderViewHolder(@NonNull View itemView) {
super(itemView);
}
}
public void addAll(List<OptionMenuItem> options) {
this.options.clear();
this.options.addAll(options);
notifyDataSetChanged();
}
public void add(OptionMenuItem option) {
if (options != null) {
this.options.add(option);
notifyDataSetChanged();
}
}
public void setHasHeader(Boolean hasHeader) {
this.hasHeader = hasHeader;
}
// 对外暴露的接口以及设置监听的方法
public interface OnMenuItemClickListener {
void onMenuClick(View view, int action);
}
public void setOnMenuItemClickListener(OnMenuItemClickListener listener) {
this.onMenuClickListener = listener;
}
}
- 最后是直接使用的方式
ThirdActivity.java
public class ThirdActivity extends AppCompatActivity implements MenuListAdapter.OnMenuItemClickListener{
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_third);
ArrayList<OptionMenuItem> list = new ArrayList<>();
list.add(new OptionMenuItem("Forward", 98));
list.add(new OptionMenuItem("Copy", 2121));
list.add(new OptionMenuItem("Mark as unread", 111));
list.add(new OptionMenuItem("Star message", 66));
list.add(new OptionMenuItem("Cancel", 2));
MenuListAdapter menuListAdapter = new MenuListAdapter();
menuListAdapter.addAll(list);
menuListAdapter.setHasHeader(true);
menuListAdapter.setOnMenuItemClickListener(this);
findViewById(R.id.button2).setOnClickListener(v -> {
// 两种方式等效
// MenuBottomSheetDialog.builder(ThirdActivity.this)
// .setAdapter(menuListAdapter)
// .setHasItemDecoration(true)
// .show(getSupportFragmentManager());
MenuBottomSheetDialog dialog = MenuBottomSheetDialog.builder(ThirdActivity.this)
.setAdapter(menuListAdapter)
.setHasItemDecoration(true)
.build();
dialog.show(getSupportFragmentManager());
});
}
@Override
public void onMenuClick(View view, int action) {
// 点击事件的回调
Toast.makeText(this, "action " + action, Toast.LENGTH_SHORT).show();
}
}
3. BottomSheetDialog进阶与Bug

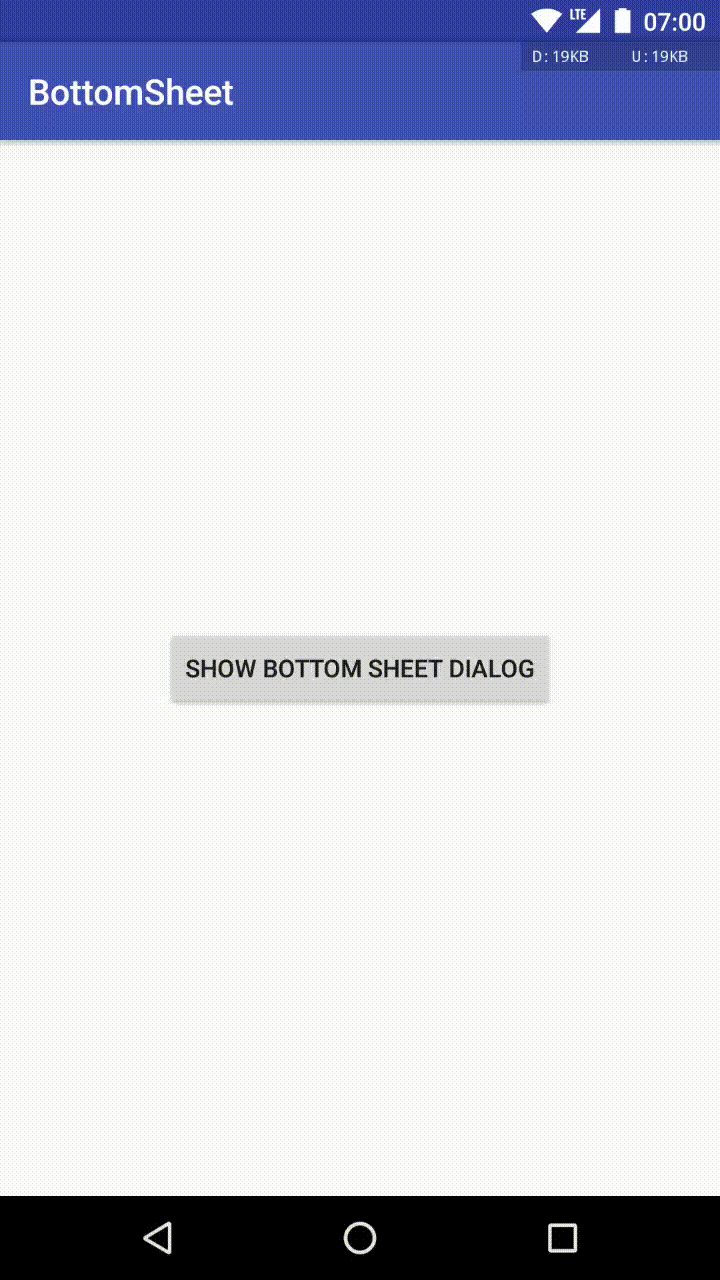

上图即BottomSheetDialog与ViewPager以及RecyclerView之间的Bug，简而言之就是ViewPager下除了第一个页面可以滑动之外，其他页面均不可滑动，具体的Error link以及我在Github上提的issue，这个问题已经有大神给出了解决方法，但是官方目前还是没有引入。

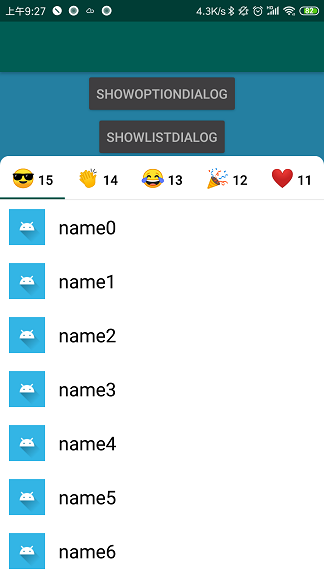

下面我们就来复现这种状况，不过我的设计效果与上图略有不同，增加了一些内容，首先是TabLayout的title，它是由两部分组成，前面是一个Unicode表情，后面是数字，数值表示在这个表情下的list的大小；TabLayout下面对应不同的Fragment，Fragment中显示当前的list，我这里生成的Item都是简单写一下，没有具体意义；整个设计思路是，自定义一个ListBottomSheetDialog，这个dialog由ViewPager + TabLayout + Fragment + RecyclerView组成，先从Fragment开始实现步骤
ListObjectFragment布局文件fragment_list.xml与Item布局文件item_list.xml
<!-- fragment_list.xml -->
<!-- 首先暂时使用CoordinatorLayout，可能后续会修改为NestedScrollView，此处伏笔 -->
<!-- 而且background="@color/white"是由于后面Dialog为透明背景，这里需要白色背景避免Fragment切换时背景突变透明 -->
<?xml version="1.0" encoding="utf-8"?>
<androidx.coordinatorlayout.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@color/white"
android:orientation="vertical">
<androidx.recyclerview.widget.RecyclerView
android:id="@+id/list_view"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:layout_behavior="com.google.android.material.bottomsheet.BottomSheetBehavior" />
</androidx.coordinatorlayout.widget.CoordinatorLayout>
<!-- item_list.xml -->
<!-- 注意这里也使用了上面文中出现的水波纹效果背景touch_bg，这是因为要实现圆角背景 -->
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@drawable/touch_bg"
android:orientation="horizontal"
android:padding="10dp">
<ImageView
android:id="@+id/avatar"
android:layout_width="40dp"
android:layout_height="40dp"
android:background="@color/holo_blue_light" />
<TextView
android:id="@+id/name"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_gravity="center"
android:layout_marginStart="10dp"
android:layout_weight="1"
android:padding="5dp"
android:text="name"
android:textColor="@color/black"
android:textSize="20sp" />
</LinearLayout>
- 然后是RecyclerView的Adapter
ListViewAdapter.java
public class ListViewAdapter extends RecyclerView.Adapter<ListViewAdapter.MyViewHolder>{
// 这里加了点击事件的接口
private ItemClickListener onItemClickListener;
// 显示的Item就是一个一个的User信息，User信息也很简单，avatar和name，但是avatar没有赋值
private List<User> data;
public ListViewAdapter(List<User> data) {
this.data = data;
}
@NonNull
@Override
public MyViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
// 常见方式
View view = LayoutInflater.from(parent.getContext()).inflate(R.layout.item_list, parent, false);
MyViewHolder holder = new MyViewHolder(view);
return holder;
}
@Override
public void onBindViewHolder(@NonNull MyViewHolder holder, int position) {
User user = data.get(position);
// 这里avatar写死了，没有赋值，偷个懒
holder.avatar.setImageResource(R.drawable.ic_launcher_foreground);
holder.name.setText(user.getName());
// 把点击事件传出去
holder.itemView.setOnClickListener(v -> {
if (onItemClickListener != null) {
onItemClickListener.onItemClick(holder.itemView, position);
}
});
}
@Override
public int getItemCount() {
return data.size();
}
class MyViewHolder extends RecyclerView.ViewHolder {
ImageView avatar;
TextView name;
public MyViewHolder(@NonNull View itemView) {
super(itemView);
avatar = itemView.findViewById(R.id.avatar);
name = itemView.findViewById(R.id.name);
}
}
public interface ItemClickListener {
void onItemClick(View view, int position);
}
public void setItemClickListener(ItemClickListener clickListener) {
onItemClickListener = clickListener;
}
}
public class User {
private String avatar;
private String name;
public User(String avatar, String name) {
this.avatar = avatar;
this.name = name;
}
public String getAvatar() {
return avatar;
}
public void setAvatar(String avatar) {
this.avatar = avatar;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
- Fragment
ListObjectFragment.java
public class ListObjectFragment extends Fragment implements ListViewAdapter.ItemClickListener{
// emoji表示Unicode表情，count表示list大小
private int count;
private String emoji;
private List<User> list;
private ListViewAdapter listViewAdapter;
private RecyclerView recyclerView;
// 加了几个参数用于仅在Fragment对用户可见时加载数据，针对ViewPager预加载
private boolean isViewInitiated;
private boolean isVisibleToUser;
private boolean isDataInitiated;
// 这里传入了list，但是在onResume时才是真实加载数据的时候
public ListObjectFragment(String emoji, int count, List<User> list) {
this.emoji = emoji;
this.count = count;
this.list = list;
}
@Override
public View onCreateView(LayoutInflater inflater,
ViewGroup container, Bundle savedInstanceState) {
return inflater.inflate(R.layout.fragment_list_test, container, false);
}
@Override
public void onResume() {
super.onResume();
isVisibleToUser = true;
prepareFetchData();
listViewAdapter = new ListViewAdapter(list);
listViewAdapter.setItemClickListener(this);
recyclerView.setLayoutManager(new LinearLayoutManager(getContext()));
recyclerView.setAdapter(listViewAdapter);
}
@Override
public void onStop() {
super.onStop();
isVisibleToUser = false;
}
private void fetchData() {
// 真实加载list的地方，这里仅模拟
list = new ArrayList<>();
for (int i = 0; i < count; i++) {
list.add(new User("", "name" + i));
}
}
public boolean prepareFetchData() {
return prepareFetchData(false);
}
public boolean prepareFetchData(boolean forceUpdate) {
if (isVisibleToUser && isViewInitiated && (!isDataInitiated || forceUpdate)) {
fetchData();
isDataInitiated = true;
return true;
}
return false;
}
@Override
public void onViewCreated(@NonNull View view, @Nullable Bundle savedInstanceState) {
isViewInitiated = true;
recyclerView = view.findViewById(R.id.list_view);
}
@Override
public void onItemClick(View view, int position) {
// 点击事件回调
Toast.makeText(getContext(), "position" + position, Toast.LENGTH_SHORT).show();
}
}
- 自定义BottomSheetDialog的布局文件
dialog_list.xml，圆角背景radius_background.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<com.google.android.material.tabs.TabLayout
android:id="@+id/tablayout"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@drawable/radius_background"
app:tabIndicatorColor="@color/colorPrimaryDark"
app:tabMode="scrollable"
app:tabTextColor="@color/black" />
<View
android:layout_width="match_parent"
android:layout_height="1dp"
android:background="@color/split_line_grey" />
<com.tao.bottomsheetdemo.custom.CustomViewPager
android:id="@+id/viewpager"
android:layout_width="match_parent"
android:layout_height="match_parent"/>
</LinearLayout>
<!-- radius_background.xml -->
<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
<solid android:color="@color/white" />
<corners
android:topLeftRadius="10dp"
android:topRightRadius="10dp" />
</shape>
- 自定义ViewPager
CustomViewPager.java
public class CustomViewPager extends ViewPager {
// CustomViewPager control scroll enable
private boolean enabled;
public CustomViewPager(@NonNull Context context) {
super(context);
this.enabled = true;
}
public CustomViewPager(Context context, AttributeSet attrs) {
super(context, attrs);
this.enabled = true;
}
@Override
public boolean onTouchEvent(MotionEvent event) {
if (this.enabled) {
return super.onTouchEvent(event);
}
return false;
}
@Override
public boolean onInterceptTouchEvent(MotionEvent event) {
// 事件传递控制是否支持左右滑动
if (this.enabled) {
return super.onInterceptTouchEvent(event);
}
return false;
}
public void setPagingEnabled(boolean enabled) {
this.enabled = enabled;
}
}
- 自定义BottomSheetDialog
ListBottomSheetDialog.java与ViewPager的AdapterListPagerAdapter.java
public class ListBottomSheetDialog extends BottomSheetDialogFragment {
private static final String TAG = ListBottomSheetDialog.class.getSimpleName();
// 这里的ViewPager为自定义的CustomViewPager，多了额外的功能：可以控制是否支持左右滑动切换Fragment
private TabLayout tabLayout;
private CustomViewPager viewPager;
// offscreenPageLimit设置可以使ViewPager下的Fragment缓存数据，数值表示缓存数据的Fragment数量
private int offscreenPageLimit = 10;
// 通过参数控制是否支持左右滑动
private Boolean enableScroll;
// EmojiItem是包含emoji/count/list的实体类，所以可知传入Dialog的数据是一种嵌套list形式
private List<EmojiItem> emojiItemList;
private Context context;
// ViewPager的Adapter
private ListPagerAdapter adapter;
private static ListBottomSheetDialog newInstance(ListBottomSheetDialog.Builder builder) {
ListBottomSheetDialog fragment = new ListBottomSheetDialog();
// Bundle bundle = new Bundle();
// fragment.setArguments(bundle);
// fragment.setHeight(builder.peekHeight, builder.maxHeight);
fragment.setEmojiItemList(builder.emojiItemList);
fragment.setContext(builder.context);
fragment.setOffscreenPageLimit(builder.offscreenPageLimit);
fragment.setEnableScroll(builder.enableScroll);
return fragment;
}
@NonNull
@Override
public Dialog onCreateDialog(@Nullable Bundle savedInstanceState) {
// 由于需要首先圆角背景，所以这里也使用了透明背景
BottomSheetDialog dialog = new BottomSheetDialog(context, R.style.SheetDialog);
// set dialog peek height and max height
// dialog.setPeekHeight(peekHeight);
// dialog.setMaxHeight(maxHeight);
return dialog;
}
@Nullable
@Override
public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
return inflater.inflate(R.layout.dialog_list, container, false);
}
@Override
public void onViewCreated(@NonNull View view, @Nullable Bundle savedInstanceState) {
super.onViewCreated(view, savedInstanceState);
viewPager = view.findViewById(R.id.viewpager);
tabLayout = view.findViewById(R.id.tablayout);
if (viewPager != null && tabLayout != null) {
initViewPager();
}
}
private void initViewPager() {
// ListPagerAdapter.BEHAVIOR_RESUME_ONLY_CURRENT_FRAGMENT参数控制仅在Fragment对用户可见时调用onResume，这也是对应了上面在
// Fragment中数据加载
adapter = new ListPagerAdapter(getChildFragmentManager(), ListPagerAdapter.BEHAVIOR_RESUME_ONLY_CURRENT_FRAGMENT, context);
// 这里的emojiItemList比较简单，没有其他参数，理论上需要根据定义的其他参数传入到Fragment中再进行进一步请求数据
adapter.setEmojiItemList(emojiItemList);
viewPager.setAdapter(adapter);
viewPager.setOffscreenPageLimit(offscreenPageLimit);
// 这里可以控制是否左右滑动
viewPager.setPagingEnabled(enableScroll);
// TabLayout与ViewPager关联，自动实现滑动切换或者点击切换的效果
tabLayout.setupWithViewPager(viewPager);
}
public void show(FragmentManager fragmentManager) {
FragmentTransaction transaction = fragmentManager.beginTransaction();
Fragment prevFragment = fragmentManager.findFragmentByTag(TAG);
if (prevFragment != null) {
transaction.remove(prevFragment);
}
transaction.addToBackStack(null);
show(transaction, TAG);
}
// 建造者模式，同上
public static Builder builder(Context context) {
return new Builder(context);
}
public static class Builder {
// private int peekHeight;
// private int maxHeight;
private int offscreenPageLimit;
private Boolean enableScroll;
private List<EmojiItem> emojiItemList;
private Context context;
public Builder(Context context) {
this.context = context;
}
// 这里注释掉的方法可以控制Dialog Expand状态下的高度以及Collapse状态的高度，但是需要自定义BottomSheetDialog
// 暂时不写
// public Builder setPeekHeight(int peekHeight) {
// this.peekHeight = peekHeight;
// return this;
// }
// public Builder setMaxHeight(int maxHeight) {
// this.maxHeight = maxHeight;
// return this;
// }
public Builder setOffscreenPageLimit(int offscreenPageLimit) {
this.offscreenPageLimit = offscreenPageLimit;
return this;
}
public Builder setEnableScroll(Boolean enableScroll) {
this.enableScroll = enableScroll;
return this;
}
public Builder setEmojiItemList(List<EmojiItem> emojiItemList) {
this.emojiItemList = emojiItemList;
return this;
}
public ListBottomSheetDialog build() {
return newInstance(this);
}
public ListBottomSheetDialog show(FragmentManager fragmentManager) {
ListBottomSheetDialog dialog = build();
dialog.show(fragmentManager);
return dialog;
}
}
private void setContext(Context context) {
this.context = context;
}
// private void setHeight(int peekHeight, int maxHeight) {
// this.peekHeight = peekHeight;
// this.maxHeight = maxHeight;
// }
private void setOffscreenPageLimit(int offscreenPageLimit) {
this.offscreenPageLimit = offscreenPageLimit;
}
private void setEnableScroll(Boolean enableScroll) {
this.enableScroll = enableScroll;
}
private void setEmojiItemList(List<EmojiItem> emojiItemList) {
this.emojiItemList = emojiItemList;
}
}
public class ListPagerAdapter extends FragmentStatePagerAdapter {
private List<EmojiItem> emojiItemList;
private List<EmojiItem> sortedList;
private Context context;
public ListPagerAdapter(@NonNull FragmentManager fm, int behavior, Context context) {
super(fm, behavior);
this.context = context;
}
public ListPagerAdapter(@NonNull FragmentManager fm, int behavior, List<EmojiItem> emojiItemList, Context context) {
super(fm, behavior);
this.emojiItemList = emojiItemList;
this.context = context;
// 这里还需要将传入的emojiItemList按照count进行降序排列
this.sortedList = sortList(emojiItemList);
}
@Override
public Fragment getItem(int position) {
String label = sortedList.get(position).getEmoji();
int count = sortedList.get(position).getCount();
List<User> list = sortedList.get(position).getUserList();
Fragment fragment = new ListObjectFragment(label, count, list);
Bundle args = new Bundle();
return fragment;
}
@Override
public int getCount() {
return emojiItemList.size();
}
@Override
public CharSequence getPageTitle(int position) {
// 这里设置TabLayout的title，emoji+count
CharSequence emoji = sortedList.get(position).getEmoji();
CharSequence title = emoji + " " + sortedList.get(position).getCount();
SpannableStringBuilder spBuilder = new SpannableStringBuilder(title);
Pattern pattern = Pattern.compile(emoji.toString());
Matcher matcher = pattern.matcher(title);
while (matcher.find()) {
TextAppearanceSpan span = new TextAppearanceSpan(context, R.style.UIKitTextView_ReactionLabel);
spBuilder.setSpan(span, matcher.start(), matcher.end(), Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
}
return spBuilder;
}
private List<EmojiItem> sortList(List<EmojiItem> list) {
List<EmojiItem> tmp = new ArrayList<>(list);
Collections.sort(tmp, new Comparator<EmojiItem>() {
@Override
public int compare(EmojiItem o1, EmojiItem o2) {
return o2.getCount() - o1.getCount();
}
});
return tmp;
}
public void setEmojiItemList(List<EmojiItem> emojiItemList) {
this.emojiItemList = emojiItemList;
this.sortedList = sortList(emojiItemList);
}
}
- EmojiItem实体类
public class EmojiItem {
private String emoji;
private int count;
private List<User> userList;
public EmojiItem(String emoji, int count, List<User> userList) {
this.emoji = emoji;
this.count = count;
this.userList = userList;
}
public String getEmoji() {
return emoji;
}
public void setEmoji(String emoji) {
this.emoji = emoji;
}
public int getCount() {
return count;
}
public void setCount(int count) {
this.count = count;
}
public List<User> getUserList() {
return userList;
}
public void setUserList(List<User> userList) {
this.userList = userList;
}
}
- 调用
FourthActivity.java
public class FourthActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fourth);
List<EmojiItem> data = new ArrayList<>();
String[] arr = new String[]{
"\uD83D\uDC4D", "❤️", "\uD83C\uDF89", "\uD83D\uDE02", "\uD83D\uDC4F", "\uD83D\uDE0E"
};
for (int i = 0; i < arr.length; i++) {
data.add(new EmojiItem(arr[i], i + 10, null));
}
findViewById(R.id.button4).setOnClickListener(v ->
ListBottomSheetDialog.builder(FourthActivity.this)
.setEmojiItemList(data)
.setOffscreenPageLimit(5)
.setEnableScroll(true)
.show(getSupportFragmentManager()));
}
}
运行结果
很明显有几个问题：
- list上面有一段空白；
- 除了第一个Fragment中的list可以上下滑动以外，其他Fragment中的list不可滑动，这也就是BottomSheetDialog的bug。
4. 解决方法
针对第一个Bug，这是由于Fragment的布局文件中采用了CoordinatorLayout，我们替换为NestedScrollView，对应伏笔。
第二个bug就比较复杂，根据找到的资料显示大致有两种解决方法（并不一定能成功）
4.1 重写ViewPager的Adapter的setPrimaryItem方法
也就是在ListPagerAdapter.java中加入
@Override
public void setPrimaryItem(@NonNull ViewGroup container, int position, @NonNull Object object) {
super.setPrimaryItem(container, position, object);
Fragment currentFragment = (Fragment) object;
if (currentFragment.getView() != null) {
for (int i = 0; i < container.getChildCount(); i++) {
if (i != position) {
// 注意这里用NestedScrollView是因为已经默认上面第一个bug被纠正
NestedScrollView otherScrollView = (NestedScrollView) container.getChildAt(i);
otherScrollView.setNestedScrollingEnabled(false);
}
}
NestedScrollView currentNestedScrollView = (NestedScrollView) currentFragment.getView();
currentNestedScrollView.setNestedScrollingEnabled(true);
container.requestLayout();
}
}
这段代码的作用是让对用户可见的Fragment中的NestedScrollView设置为可以滑动，其他不可见为禁止滑动，但是很遗憾，并没有解决问题，不可滑动问题依然存在。
4.2 重写BottomSheetBehavior的findScrollingChild方法
我们可以对比以下原始的findScrollingChild方法
View findScrollingChild(View view) {
if (ViewCompat.isNestedScrollingEnabled(view)) {
return view;
}
if (view instanceof ViewGroup) {
ViewGroup group = (ViewGroup) view;
for (int i = 0, count = group.getChildCount(); i < count; i++) {
View scrollingChild = findScrollingChild(group.getChildAt(i));
if (scrollingChild != null) {
return scrollingChild;
}
}
}
return null;
}
以及修改后的findScrollingChild方法
private View findScrollingChild(View view) {
if (ViewCompat.isNestedScrollingEnabled(view)) {
return view;
}
// 修改后的代码增加了判断的选项，根据debug的结果我们知道如果最终返回的scrollingChild是可见状态的Fragment中的NestedScrollView，
// 那么则可以正常滑动，否则不可滑动
if (view instanceof ViewPager) {
ViewPager viewPager = (ViewPager) view;
// ViewPagerUtils通过反射获取position得到当前的Fragment中的NestedScrollView
View currentViewPagerChild = ViewPagerUtils.getCurrentView(viewPager);
if (currentViewPagerChild == null) {
return null;
}
View scrollingChild = findScrollingChild(currentViewPagerChild);
if (scrollingChild != null) {
return scrollingChild;
}
} else if (view instanceof ViewGroup) {
ViewGroup group = (ViewGroup) view;
for (int i = 0, count = group.getChildCount(); i < count; i++) {
View scrollingChild = findScrollingChild(group.getChildAt(i));
if (scrollingChild != null) {
return scrollingChild;
}
}
}
return null;
}
为了重写findScrollingChild方法，有两种方式，一是在com.google.android.material.bottomsheet包下继承BottomSheetBehavior并重写findScrollingChild方法，一是创建新的BottomSheetBehavior类，复制其中的大部分代码以及相关文件。
- 创建当前项目下的另一个包com.google.android.material.bottomsheet不是一个很好的选择，所以不采用；
- 新建ViewPagerBottomSheetBehavior类，复制代码，并修改findScrollingChild方法，这样会创建很多额外的文件。
采用方法二，我们需要加入以下几个文件：
ViewPagerBottomSheetBehavior.java
ViewPagerUtils.java
BottomSheetUtils.java
design_view_pager_bottom_sheet_dialog.xml
/**
* An interaction behavior plugin for a child view of {@link CoordinatorLayout} to make it work as
* a bottom sheet.
*/
public class ViewPagerBottomSheetBehavior<V extends View> extends CoordinatorLayout.Behavior<V> {
/**
* Callback for monitoring events about bottom sheets.
*/
public abstract static class BottomSheetCallback {
/**
* Called when the bottom sheet changes its state.
*
* @param bottomSheet The bottom sheet view.
* @param newState The new state. This will be one of {@link #STATE_DRAGGING},
* {@link #STATE_SETTLING}, {@link #STATE_EXPANDED},
* {@link #STATE_COLLAPSED}, or {@link #STATE_HIDDEN}.
*/
public abstract void onStateChanged(@NonNull View bottomSheet, @State int newState);
/**
* Called when the bottom sheet is being dragged.
*
* @param bottomSheet The bottom sheet view.
* @param slideOffset The new offset of this bottom sheet within [-1,1] range. Offset
* increases as this bottom sheet is moving upward. From 0 to 1 the sheet
* is between collapsed and expanded states and from -1 to 0 it is
* between hidden and collapsed states.
*/
public abstract void onSlide(@NonNull View bottomSheet, float slideOffset);
}
/**
* The bottom sheet is dragging.
*/
public static final int STATE_DRAGGING = 1;
/**
* The bottom sheet is settling.
*/
public static final int STATE_SETTLING = 2;
/**
* The bottom sheet is expanded.
*/
public static final int STATE_EXPANDED = 3;
/**
* The bottom sheet is collapsed.
*/
public static final int STATE_COLLAPSED = 4;
/**
* The bottom sheet is hidden.
*/
public static final int STATE_HIDDEN = 5;
/**
* @hide
*/
@RestrictTo(LIBRARY_GROUP)
@IntDef({STATE_EXPANDED, STATE_COLLAPSED, STATE_DRAGGING, STATE_SETTLING, STATE_HIDDEN})
@Retention(RetentionPolicy.SOURCE)
public @interface State {
}
/**
* Peek at the 16:9 ratio keyline of its parent.
*
* <p>This can be used as a parameter for {@link #setPeekHeight(int)}.
* {@link #getPeekHeight()} will return this when the value is set.</p>
*/
public static final int PEEK_HEIGHT_AUTO = -1;
private static final float HIDE_THRESHOLD = 0.5f;
private static final float HIDE_FRICTION = 0.1f;
private float mMaximumVelocity;
private int mPeekHeight;
private boolean mPeekHeightAuto;
private int mPeekHeightMin;
int mMinOffset;
int mMaxOffset;
boolean mHideable;
private boolean mSkipCollapsed;
@State
int mState = STATE_COLLAPSED;
ViewDragHelper mViewDragHelper;
private boolean mIgnoreEvents;
private int mLastNestedScrollDy;
private boolean mNestedScrolled;
int mParentHeight;
WeakReference<V> mViewRef;
WeakReference<View> mNestedScrollingChildRef;
private BottomSheetCallback mCallback;
private VelocityTracker mVelocityTracker;
int mActivePointerId;
private int mInitialY;
boolean mTouchingScrollingChild;
/**
* Default constructor for instantiating ViewPagerBottomSheetBehaviors.
*/
public ViewPagerBottomSheetBehavior() {
}
/**
* Default constructor for inflating ViewPagerBottomSheetBehaviors from layout.
*
* @param context The {@link Context}.
* @param attrs The {@link AttributeSet}.
*/
public ViewPagerBottomSheetBehavior(Context context, AttributeSet attrs) {
super(context, attrs);
TypedArray a = context.obtainStyledAttributes(attrs,
R.styleable.BottomSheetBehavior_Layout);
TypedValue value = a.peekValue(R.styleable.BottomSheetBehavior_Layout_behavior_peekHeight);
if (value != null && value.data == PEEK_HEIGHT_AUTO) {
setPeekHeight(value.data);
} else {
setPeekHeight(a.getDimensionPixelSize(
R.styleable.BottomSheetBehavior_Layout_behavior_peekHeight, PEEK_HEIGHT_AUTO));
}
setHideable(a.getBoolean(R.styleable.BottomSheetBehavior_Layout_behavior_hideable, false));
setSkipCollapsed(a.getBoolean(R.styleable.BottomSheetBehavior_Layout_behavior_skipCollapsed,
false));
a.recycle();
ViewConfiguration configuration = ViewConfiguration.get(context);
mMaximumVelocity = configuration.getScaledMaximumFlingVelocity();
}
@Override
public Parcelable onSaveInstanceState(CoordinatorLayout parent, V child) {
return new SavedState(super.onSaveInstanceState(parent, child), mState);
}
@Override
public void onRestoreInstanceState(CoordinatorLayout parent, V child, Parcelable state) {
SavedState ss = (SavedState) state;
super.onRestoreInstanceState(parent, child, ss.getSuperState());
// Intermediate states are restored as collapsed state
if (ss.state == STATE_DRAGGING || ss.state == STATE_SETTLING) {
mState = STATE_COLLAPSED;
} else {
mState = ss.state;
}
}
@Override
public boolean onLayoutChild(CoordinatorLayout parent, V child, int layoutDirection) {
if (ViewCompat.getFitsSystemWindows(parent) && !ViewCompat.getFitsSystemWindows(child)) {
ViewCompat.setFitsSystemWindows(child, true);
}
int savedTop = child.getTop();
// First let the parent lay it out
parent.onLayoutChild(child, layoutDirection);
// Offset the bottom sheet
mParentHeight = parent.getHeight();
int peekHeight;
if (mPeekHeightAuto) {
if (mPeekHeightMin == 0) {
mPeekHeightMin = parent.getResources().getDimensionPixelSize(
R.dimen.design_bottom_sheet_peek_height_min);
}
peekHeight = Math.max(mPeekHeightMin, mParentHeight - parent.getWidth() * 9 / 16);
} else {
peekHeight = mPeekHeight;
}
mMinOffset = Math.max(0, mParentHeight - child.getHeight());
mMaxOffset = Math.max(mParentHeight - peekHeight, mMinOffset);
if (mState == STATE_EXPANDED) {
ViewCompat.offsetTopAndBottom(child, mMinOffset);
} else if (mHideable && mState == STATE_HIDDEN) {
ViewCompat.offsetTopAndBottom(child, mParentHeight);
} else if (mState == STATE_COLLAPSED) {
ViewCompat.offsetTopAndBottom(child, mMaxOffset);
} else if (mState == STATE_DRAGGING || mState == STATE_SETTLING) {
ViewCompat.offsetTopAndBottom(child, savedTop - child.getTop());
}
if (mViewDragHelper == null) {
mViewDragHelper = ViewDragHelper.create(parent, mDragCallback);
}
mViewRef = new WeakReference<>(child);
mNestedScrollingChildRef = new WeakReference<>(findScrollingChild(child));
return true;
}
@Override
public boolean onInterceptTouchEvent(CoordinatorLayout parent, V child, MotionEvent event) {
if (!child.isShown()) {
mIgnoreEvents = true;
return false;
}
int action = event.getActionMasked();
// Record the velocity
if (action == MotionEvent.ACTION_DOWN) {
reset();
}
if (mVelocityTracker == null) {
mVelocityTracker = VelocityTracker.obtain();
}
mVelocityTracker.addMovement(event);
switch (action) {
case MotionEvent.ACTION_UP:
case MotionEvent.ACTION_CANCEL:
mTouchingScrollingChild = false;
mActivePointerId = MotionEvent.INVALID_POINTER_ID;
// Reset the ignore flag
if (mIgnoreEvents) {
mIgnoreEvents = false;
return false;
}
break;
case MotionEvent.ACTION_DOWN:
int initialX = (int) event.getX();
mInitialY = (int) event.getY();
View scroll = mNestedScrollingChildRef != null
? mNestedScrollingChildRef.get() : null;
if (scroll != null && parent.isPointInChildBounds(scroll, initialX, mInitialY)) {
mActivePointerId = event.getPointerId(event.getActionIndex());
mTouchingScrollingChild = true;
}
mIgnoreEvents = mActivePointerId == MotionEvent.INVALID_POINTER_ID &&
!parent.isPointInChildBounds(child, initialX, mInitialY);
break;
}
if (!mIgnoreEvents && mViewDragHelper.shouldInterceptTouchEvent(event)) {
return true;
}
// We have to handle cases that the ViewDragHelper does not capture the bottom sheet because
// it is not the top most view of its parent. This is not necessary when the touch event is
// happening over the scrolling content as nested scrolling logic handles that case.
View scroll = mNestedScrollingChildRef.get();
return action == MotionEvent.ACTION_MOVE && scroll != null &&
!mIgnoreEvents && mState != STATE_DRAGGING &&
!parent.isPointInChildBounds(scroll, (int) event.getX(), (int) event.getY()) &&
Math.abs(mInitialY - event.getY()) > mViewDragHelper.getTouchSlop();
}
@Override
public boolean onTouchEvent(CoordinatorLayout parent, V child, MotionEvent event) {
if (!child.isShown()) {
return false;
}
int action = event.getActionMasked();
if (mState == STATE_DRAGGING && action == MotionEvent.ACTION_DOWN) {
return true;
}
if (mViewDragHelper != null) {
mViewDragHelper.processTouchEvent(event);
}
// Record the velocity
if (action == MotionEvent.ACTION_DOWN) {
reset();
}
if (mVelocityTracker == null) {
mVelocityTracker = VelocityTracker.obtain();
}
mVelocityTracker.addMovement(event);
// The ViewDragHelper tries to capture only the top-most View. We have to explicitly tell it
// to capture the bottom sheet in case it is not captured and the touch slop is passed.
if (action == MotionEvent.ACTION_MOVE && !mIgnoreEvents) {
if (Math.abs(mInitialY - event.getY()) > mViewDragHelper.getTouchSlop()) {
mViewDragHelper.captureChildView(child, event.getPointerId(event.getActionIndex()));
}
}
return !mIgnoreEvents;
}
@Override
public boolean onStartNestedScroll(CoordinatorLayout coordinatorLayout, V child,
View directTargetChild, View target, int nestedScrollAxes) {
mLastNestedScrollDy = 0;
mNestedScrolled = false;
return (nestedScrollAxes & ViewCompat.SCROLL_AXIS_VERTICAL) != 0;
}
@Override
public void onNestedPreScroll(CoordinatorLayout coordinatorLayout, V child, View target, int dx,
int dy, int[] consumed) {
View scrollingChild = mNestedScrollingChildRef.get();
if (target != scrollingChild) {
return;
}
int currentTop = child.getTop();
int newTop = currentTop - dy;
if (dy > 0) { // Upward
if (newTop < mMinOffset) {
consumed[1] = currentTop - mMinOffset;
ViewCompat.offsetTopAndBottom(child, -consumed[1]);
setStateInternal(STATE_EXPANDED);
} else {
consumed[1] = dy;
ViewCompat.offsetTopAndBottom(child, -dy);
setStateInternal(STATE_DRAGGING);
}
} else if (dy < 0) { // Downward
if (!target.canScrollVertically(-1)) {
if (newTop <= mMaxOffset || mHideable) {
consumed[1] = dy;
ViewCompat.offsetTopAndBottom(child, -dy);
setStateInternal(STATE_DRAGGING);
} else {
consumed[1] = currentTop - mMaxOffset;
ViewCompat.offsetTopAndBottom(child, -consumed[1]);
setStateInternal(STATE_COLLAPSED);
}
}
}
dispatchOnSlide(child.getTop());
mLastNestedScrollDy = dy;
mNestedScrolled = true;
}
@Override
public void onStopNestedScroll(CoordinatorLayout coordinatorLayout, V child, View target) {
if (child.getTop() == mMinOffset) {
setStateInternal(STATE_EXPANDED);
return;
}
if (mNestedScrollingChildRef == null || target != mNestedScrollingChildRef.get()
|| !mNestedScrolled) {
return;
}
int top;
int targetState;
if (mLastNestedScrollDy > 0) {
top = mMinOffset;
targetState = STATE_EXPANDED;
} else if (mHideable && shouldHide(child, getYVelocity())) {
top = mParentHeight;
targetState = STATE_HIDDEN;
} else if (mLastNestedScrollDy == 0) {
int currentTop = child.getTop();
if (Math.abs(currentTop - mMinOffset) < Math.abs(currentTop - mMaxOffset)) {
top = mMinOffset;
targetState = STATE_EXPANDED;
} else {
top = mMaxOffset;
targetState = STATE_COLLAPSED;
}
} else {
top = mMaxOffset;
targetState = STATE_COLLAPSED;
}
if (mViewDragHelper.smoothSlideViewTo(child, child.getLeft(), top)) {
setStateInternal(STATE_SETTLING);
ViewCompat.postOnAnimation(child, new SettleRunnable(child, targetState));
} else {
setStateInternal(targetState);
}
mNestedScrolled = false;
}
@Override
public boolean onNestedPreFling(CoordinatorLayout coordinatorLayout, V child, View target,
float velocityX, float velocityY) {
return target == mNestedScrollingChildRef.get() &&
(mState != STATE_EXPANDED ||
super.onNestedPreFling(coordinatorLayout, child, target,
velocityX, velocityY));
}
void invalidateScrollingChild() {
final View scrollingChild = findScrollingChild(mViewRef.get());
mNestedScrollingChildRef = new WeakReference<>(scrollingChild);
}
/**
* Sets the height of the bottom sheet when it is collapsed.
*
* @param peekHeight The height of the collapsed bottom sheet in pixels, or
* {@link #PEEK_HEIGHT_AUTO} to configure the sheet to peek automatically
* at 16:9 ratio keyline.
* @attr ref android.support.design.R.styleable#BottomSheetBehavior_Layout_behavior_peekHeight
*/
public final void setPeekHeight(int peekHeight) {
boolean layout = false;
if (peekHeight == PEEK_HEIGHT_AUTO) {
if (!mPeekHeightAuto) {
mPeekHeightAuto = true;
layout = true;
}
} else if (mPeekHeightAuto || mPeekHeight != peekHeight) {
mPeekHeightAuto = false;
mPeekHeight = Math.max(0, peekHeight);
mMaxOffset = mParentHeight - peekHeight;
layout = true;
}
if (layout && mState == STATE_COLLAPSED && mViewRef != null) {
V view = mViewRef.get();
if (view != null) {
view.requestLayout();
}
}
}
/**
* Gets the height of the bottom sheet when it is collapsed.
*
* @return The height of the collapsed bottom sheet in pixels, or {@link #PEEK_HEIGHT_AUTO}
* if the sheet is configured to peek automatically at 16:9 ratio keyline
* @attr ref android.support.design.R.styleable#BottomSheetBehavior_Layout_behavior_peekHeight
*/
public final int getPeekHeight() {
return mPeekHeightAuto ? PEEK_HEIGHT_AUTO : mPeekHeight;
}
/**
* Sets whether this bottom sheet can hide when it is swiped down.
*
* @param hideable {@code true} to make this bottom sheet hideable.
* @attr ref android.support.design.R.styleable#BottomSheetBehavior_Layout_behavior_hideable
*/
public void setHideable(boolean hideable) {
mHideable = hideable;
}
/**
* Gets whether this bottom sheet can hide when it is swiped down.
*
* @return {@code true} if this bottom sheet can hide.
* @attr ref android.support.design.R.styleable#BottomSheetBehavior_Layout_behavior_hideable
*/
public boolean isHideable() {
return mHideable;
}
/**
* Sets whether this bottom sheet should skip the collapsed state when it is being hidden
* after it is expanded once. Setting this to true has no effect unless the sheet is hideable.
*
* @param skipCollapsed True if the bottom sheet should skip the collapsed state.
* @attr ref android.support.design.R.styleable#BottomSheetBehavior_Layout_behavior_skipCollapsed
*/
public void setSkipCollapsed(boolean skipCollapsed) {
mSkipCollapsed = skipCollapsed;
}
/**
* Sets whether this bottom sheet should skip the collapsed state when it is being hidden
* after it is expanded once.
*
* @return Whether the bottom sheet should skip the collapsed state.
* @attr ref android.support.design.R.styleable#BottomSheetBehavior_Layout_behavior_skipCollapsed
*/
public boolean getSkipCollapsed() {
return mSkipCollapsed;
}
/**
* Sets a callback to be notified of bottom sheet events.
*
* @param callback The callback to notify when bottom sheet events occur.
*/
public void setBottomSheetCallback(BottomSheetCallback callback) {
mCallback = callback;
}
/**
* Sets the state of the bottom sheet. The bottom sheet will transition to that state with
* animation.
*
* @param state One of {@link #STATE_COLLAPSED}, {@link #STATE_EXPANDED}, or
* {@link #STATE_HIDDEN}.
*/
public final void setState(final @State int state) {
if (state == mState) {
return;
}
if (mViewRef == null) {
// The view is not laid out yet; modify mState and let onLayoutChild handle it later
if (state == STATE_COLLAPSED || state == STATE_EXPANDED ||
(mHideable && state == STATE_HIDDEN)) {
mState = state;
}
return;
}
final V child = mViewRef.get();
if (child == null) {
return;
}
// Start the animation; wait until a pending layout if there is one.
ViewParent parent = child.getParent();
if (parent != null && parent.isLayoutRequested() && ViewCompat.isAttachedToWindow(child)) {
child.post(new Runnable() {
@Override
public void run() {
startSettlingAnimation(child, state);
}
});
} else {
startSettlingAnimation(child, state);
}
}
/**
* Gets the current state of the bottom sheet.
*
* @return One of {@link #STATE_EXPANDED}, {@link #STATE_COLLAPSED}, {@link #STATE_DRAGGING},
* {@link #STATE_SETTLING}, and {@link #STATE_HIDDEN}.
*/
@State
public final int getState() {
return mState;
}
void setStateInternal(@State int state) {
if (mState == state) {
return;
}
mState = state;
View bottomSheet = mViewRef.get();
if (bottomSheet != null && mCallback != null) {
mCallback.onStateChanged(bottomSheet, state);
}
}
private void reset() {
mActivePointerId = ViewDragHelper.INVALID_POINTER;
if (mVelocityTracker != null) {
mVelocityTracker.recycle();
mVelocityTracker = null;
}
}
boolean shouldHide(View child, float yvel) {
if (mSkipCollapsed) {
return true;
}
if (child.getTop() < mMaxOffset) {
// It should not hide, but collapse.
return false;
}
final float newTop = child.getTop() + yvel * HIDE_FRICTION;
return Math.abs(newTop - mMaxOffset) / (float) mPeekHeight > HIDE_THRESHOLD;
}
@VisibleForTesting
private View findScrollingChild(View view) {
if (ViewCompat.isNestedScrollingEnabled(view)) {
return view;
}
if (view instanceof ViewPager) {
ViewPager viewPager = (ViewPager) view;
View currentViewPagerChild = ViewPagerUtils.getCurrentView(viewPager);
if (currentViewPagerChild == null) {
return null;
}
View scrollingChild = findScrollingChild(currentViewPagerChild);
if (scrollingChild != null) {
return scrollingChild;
}
} else if (view instanceof ViewGroup) {
ViewGroup group = (ViewGroup) view;
for (int i = 0, count = group.getChildCount(); i < count; i++) {
View scrollingChild = findScrollingChild(group.getChildAt(i));
if (scrollingChild != null) {
return scrollingChild;
}
}
}
return null;
}
private float getYVelocity() {
mVelocityTracker.computeCurrentVelocity(1000, mMaximumVelocity);
return mVelocityTracker.getYVelocity(mActivePointerId);
}
void startSettlingAnimation(View child, int state) {
int top;
if (state == STATE_COLLAPSED) {
top = mMaxOffset;
} else if (state == STATE_EXPANDED) {
top = mMinOffset;
} else if (mHideable && state == STATE_HIDDEN) {
top = mParentHeight;
} else {
throw new IllegalArgumentException("Illegal state argument: " + state);
}
if (mViewDragHelper.smoothSlideViewTo(child, child.getLeft(), top)) {
setStateInternal(STATE_SETTLING);
ViewCompat.postOnAnimation(child, new SettleRunnable(child, state));
} else {
setStateInternal(state);
}
}
private final ViewDragHelper.Callback mDragCallback = new ViewDragHelper.Callback() {
@Override
public boolean tryCaptureView(View child, int pointerId) {
if (mState == STATE_DRAGGING) {
return false;
}
if (mTouchingScrollingChild) {
return false;
}
if (mState == STATE_EXPANDED && mActivePointerId == pointerId) {
View scroll = mNestedScrollingChildRef.get();
if (scroll != null && scroll.canScrollVertically(-1)) {
// Let the content scroll up
return false;
}
}
return mViewRef != null && mViewRef.get() == child;
}
@Override
public void onViewPositionChanged(View changedView, int left, int top, int dx, int dy) {
dispatchOnSlide(top);
}
@Override
public void onViewDragStateChanged(int state) {
if (state == ViewDragHelper.STATE_DRAGGING) {
setStateInternal(STATE_DRAGGING);
}
}
@Override
public void onViewReleased(View releasedChild, float xvel, float yvel) {
int top;
@State int targetState;
if (yvel < 0) { // Moving up
top = mMinOffset;
targetState = STATE_EXPANDED;
} else if (mHideable && shouldHide(releasedChild, yvel)) {
top = mParentHeight;
targetState = STATE_HIDDEN;
} else if (yvel == 0.f) {
int currentTop = releasedChild.getTop();
if (Math.abs(currentTop - mMinOffset) < Math.abs(currentTop - mMaxOffset)) {
top = mMinOffset;
targetState = STATE_EXPANDED;
} else {
top = mMaxOffset;
targetState = STATE_COLLAPSED;
}
} else {
top = mMaxOffset;
targetState = STATE_COLLAPSED;
}
if (mViewDragHelper.settleCapturedViewAt(releasedChild.getLeft(), top)) {
setStateInternal(STATE_SETTLING);
ViewCompat.postOnAnimation(releasedChild,
new SettleRunnable(releasedChild, targetState));
} else {
setStateInternal(targetState);
}
}
@Override
public int clampViewPositionVertical(View child, int top, int dy) {
return MathUtils.clamp(top, mMinOffset, mHideable ? mParentHeight : mMaxOffset);
}
@Override
public int clampViewPositionHorizontal(View child, int left, int dx) {
return child.getLeft();
}
@Override
public int getViewVerticalDragRange(View child) {
if (mHideable) {
return mParentHeight - mMinOffset;
} else {
return mMaxOffset - mMinOffset;
}
}
};
void dispatchOnSlide(int top) {
View bottomSheet = mViewRef.get();
if (bottomSheet != null && mCallback != null) {
if (top > mMaxOffset) {
mCallback.onSlide(bottomSheet, (float) (mMaxOffset - top) /
(mParentHeight - mMaxOffset));
} else {
mCallback.onSlide(bottomSheet,
(float) (mMaxOffset - top) / ((mMaxOffset - mMinOffset)));
}
}
}
@VisibleForTesting
int getPeekHeightMin() {
return mPeekHeightMin;
}
private class SettleRunnable implements Runnable {
private final View mView;
@State
private final int mTargetState;
SettleRunnable(View view, @State int targetState) {
mView = view;
mTargetState = targetState;
}
@Override
public void run() {
if (mViewDragHelper != null && mViewDragHelper.continueSettling(true)) {
ViewCompat.postOnAnimation(mView, this);
} else {
setStateInternal(mTargetState);
}
}
}
protected static class SavedState extends AbsSavedState {
@State
final int state;
public SavedState(Parcel source) {
this(source, null);
}
public SavedState(Parcel source, ClassLoader loader) {
super(source, loader);
//noinspection ResourceType
state = source.readInt();
}
public SavedState(Parcelable superState, @State int state) {
super(superState);
this.state = state;
}
@Override
public void writeToParcel(Parcel out, int flags) {
super.writeToParcel(out, flags);
out.writeInt(state);
}
public static final Creator<SavedState> CREATOR = new ClassLoaderCreator<SavedState>() {
@Override
public SavedState createFromParcel(Parcel in, ClassLoader loader) {
return new SavedState(in, loader);
}
@Override
public SavedState createFromParcel(Parcel in) {
return new SavedState(in, null);
}
@Override
public SavedState[] newArray(int size) {
return new SavedState[size];
}
};
}
/**
* A utility function to get the {@link ViewPagerBottomSheetBehavior} associated with the {@code view}.
*
* @param view The {@link View} with {@link ViewPagerBottomSheetBehavior}.
* @return The {@link ViewPagerBottomSheetBehavior} associated with the {@code view}.
*/
@SuppressWarnings("unchecked")
public static <V extends View> ViewPagerBottomSheetBehavior<V> from(V view) {
ViewGroup.LayoutParams params = view.getLayoutParams();
if (!(params instanceof CoordinatorLayout.LayoutParams)) {
throw new IllegalArgumentException("The view is not a child of CoordinatorLayout");
}
CoordinatorLayout.Behavior behavior = ((CoordinatorLayout.LayoutParams) params)
.getBehavior();
if (!(behavior instanceof ViewPagerBottomSheetBehavior)) {
throw new IllegalArgumentException(
"The view is not associated with ViewPagerBottomSheetBehavior");
}
return (ViewPagerBottomSheetBehavior<V>) behavior;
}
}
public class ViewPagerUtils {
public static View getCurrentView(ViewPager viewPager) {
final int currentItem = viewPager.getCurrentItem();
for (int i = 0; i < viewPager.getChildCount(); i++) {
final View child = viewPager.getChildAt(i);
final ViewPager.LayoutParams layoutParams = (ViewPager.LayoutParams) child.getLayoutParams();
try {
Field field = layoutParams.getClass().getDeclaredField("position");
field.setAccessible(true);
int position = field.getInt(layoutParams);
if (!layoutParams.isDecor && currentItem == position) {
return child;
}
} catch (NoSuchFieldException e) {
e.printStackTrace();
} catch (IllegalAccessException e) {
e.printStackTrace();
}
}
return null;
}
}
public final class BottomSheetUtils {
public static void setupViewPager(ViewPager viewPager) {
final View bottomSheetParent = findBottomSheetParent(viewPager);
if (bottomSheetParent != null) {
viewPager.addOnPageChangeListener(new BottomSheetViewPagerListener(viewPager, bottomSheetParent));
}
}
private static class BottomSheetViewPagerListener extends ViewPager.SimpleOnPageChangeListener {
private final ViewPager viewPager;
private final ViewPagerBottomSheetBehavior<View> behavior;
private BottomSheetViewPagerListener(ViewPager viewPager, View bottomSheetParent) {
this.viewPager = viewPager;
this.behavior = ViewPagerBottomSheetBehavior.from(bottomSheetParent);
}
@Override
public void onPageSelected(int position) {
viewPager.post(new Runnable() {
@Override
public void run() {
behavior.invalidateScrollingChild();
}
});
}
}
private static View findBottomSheetParent(final View view) {
View current = view;
while (current != null) {
final ViewGroup.LayoutParams params = current.getLayoutParams();
if (params instanceof CoordinatorLayout.LayoutParams && ((CoordinatorLayout.LayoutParams) params).getBehavior() instanceof ViewPagerBottomSheetBehavior) {
return current;
}
final ViewParent parent = current.getParent();
current = parent == null || !(parent instanceof View) ? null : (View) parent;
}
return null;
}
}
<!-- design_view_pager_bottom_sheet_dialog.xml -->
<?xml version="1.0" encoding="utf-8"?>
<!--
~ Copyright (C) 2015 The Android Open Source Project
~
~ Licensed under the Apache License, Version 2.0 (the "License");
~ you may not use this file except in compliance with the License.
~ You may obtain a copy of the License at
~
~ http://www.apache.org/licenses/LICENSE-2.0
~
~ Unless required by applicable law or agreed to in writing, software
~ distributed under the License is distributed on an "AS IS" BASIS,
~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
~ See the License for the specific language governing permissions and
~ limitations under the License.
-->
<androidx.coordinatorlayout.widget.CoordinatorLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
<View
android:id="@+id/touch_outside"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:soundEffectsEnabled="false"/>
<FrameLayout
android:id="@+id/design_bottom_sheet"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_gravity="center_horizontal|top"
android:clickable="true"
app:layout_behavior=".behavior.ViewPagerBottomSheetBehavior"
style="?attr/bottomSheetStyle"/>
</androidx.coordinatorlayout.widget.CoordinatorLayout>
然后基于上述文件自定义BottomSheetDialog ViewPagerBottomSheetDialog.java以及ViewPagerBottomSheetDialogFragment.java
public class ViewPagerBottomSheetDialog extends AppCompatDialog {
private ViewPagerBottomSheetBehavior<FrameLayout> mBehavior;
private boolean mCancelable = true;
private boolean mCanceledOnTouchOutside = true;
private boolean mCanceledOnTouchOutsideSet;
private boolean mCreated;
// 在这个自定义的Dialog中加入了设置高度的功能
private int mPeekHeight;
private int mMaxHeight;
private Window mWindow;
private ViewPagerBottomSheetBehavior mBottomSheetBehavior;
public ViewPagerBottomSheetDialog(@NonNull Context context) {
super(context, getThemeResId(context, 0));
init(1000,1000); //
}
public ViewPagerBottomSheetDialog(@NonNull Context context, @StyleRes int theme) {
super(context, getThemeResId(context, theme));
// We hide the title bar for any style configuration. Otherwise, there will be a gap
// above the bottom sheet when it is expanded.
supportRequestWindowFeature(Window.FEATURE_NO_TITLE);
init(1000, 1000);
}
public ViewPagerBottomSheetDialog(@NonNull Context context, int peekHeight, int maxHeight) {
this(context, 0, peekHeight, maxHeight);
init(peekHeight, maxHeight);
}
public ViewPagerBottomSheetDialog(@NonNull Context context, @StyleRes int theme, int peekHeight, int maxHeight) {
super(context, getThemeResId(context, theme));
// We hide the title bar for any style configuration. Otherwise, there will be a gap
// above the bottom sheet when it is expanded.
supportRequestWindowFeature(Window.FEATURE_NO_TITLE);
init(peekHeight, maxHeight);
}
protected ViewPagerBottomSheetDialog(@NonNull Context context, boolean cancelable,
DialogInterface.OnCancelListener cancelListener, int peekHeight, int maxHeight) {
super(context, cancelable, cancelListener);
supportRequestWindowFeature(Window.FEATURE_NO_TITLE);
mCancelable = cancelable;
init(peekHeight, maxHeight);
}
private void init(int peekHeight, int maxHeight) {
mWindow = getWindow();
mPeekHeight = peekHeight;
mMaxHeight = maxHeight;
}
@Override
public void setContentView(@LayoutRes int layoutResId) {
super.setContentView(wrapInBottomSheet(layoutResId, null, null));
}
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
getWindow().setLayout(
ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT);
setPeekHeight();
setMaxHeight();
mCreated = true;
}
public void setPeekHeight(int peekHeight) {
mPeekHeight = peekHeight;
if (mCreated) {
setPeekHeight();
}
}
public void setMaxHeight(int height) {
mMaxHeight = height;
if (mCreated) {
setMaxHeight();
}
}
private void setPeekHeight() {
if (mPeekHeight <= 0) {
return;
}
if (getBottomSheetBehavior() != null) {
mBottomSheetBehavior.setPeekHeight(mPeekHeight);
}
}
private void setMaxHeight() {
if (mMaxHeight <= 0) {
return;
}
// 设置高度的核心函数
mWindow.setLayout(ViewGroup.LayoutParams.MATCH_PARENT, mMaxHeight);
mWindow.setGravity(Gravity.BOTTOM);
}
private ViewPagerBottomSheetBehavior getBottomSheetBehavior() {
if (mBottomSheetBehavior != null) {
return mBottomSheetBehavior;
}
View view = mWindow.findViewById(R.id.design_bottom_sheet);
// setContentView() 没有调用
if (view == null) {
return null;
}
mBottomSheetBehavior = ViewPagerBottomSheetBehavior.from(view);
return mBottomSheetBehavior;
}
@Override
public void setContentView(View view) {
super.setContentView(wrapInBottomSheet(0, view, null));
}
@Override
public void setContentView(View view, ViewGroup.LayoutParams params) {
super.setContentView(wrapInBottomSheet(0, view, params));
}
@Override
public void setCancelable(boolean cancelable) {
super.setCancelable(cancelable);
if (mCancelable != cancelable) {
mCancelable = cancelable;
if (mBehavior != null) {
mBehavior.setHideable(cancelable);
}
}
}
@Override
public void setCanceledOnTouchOutside(boolean cancel) {
super.setCanceledOnTouchOutside(cancel);
if (cancel && !mCancelable) {
mCancelable = true;
}
mCanceledOnTouchOutside = cancel;
mCanceledOnTouchOutsideSet = true;
}
private View wrapInBottomSheet(int layoutResId, View view, ViewGroup.LayoutParams params) {
final CoordinatorLayout coordinator = (CoordinatorLayout) View.inflate(getContext(),
R.layout.design_view_pager_bottom_sheet_dialog, null);
if (layoutResId != 0 && view == null) {
view = getLayoutInflater().inflate(layoutResId, coordinator, false);
}
FrameLayout bottomSheet = (FrameLayout) coordinator.findViewById(R.id.design_bottom_sheet);
mBehavior = ViewPagerBottomSheetBehavior.from(bottomSheet);
mBehavior.setBottomSheetCallback(mBottomSheetCallback);
mBehavior.setHideable(mCancelable);
if (params == null) {
bottomSheet.addView(view);
} else {
bottomSheet.addView(view, params);
}
// We treat the CoordinatorLayout as outside the dialog though it is technically inside
coordinator.findViewById(R.id.touch_outside).setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
if (mCancelable && isShowing() && shouldWindowCloseOnTouchOutside()) {
cancel();
}
}
});
return coordinator;
}
private boolean shouldWindowCloseOnTouchOutside() {
if (!mCanceledOnTouchOutsideSet) {
if (Build.VERSION.SDK_INT < 11) {
mCanceledOnTouchOutside = true;
} else {
TypedArray a = getContext().obtainStyledAttributes(
new int[]{android.R.attr.windowCloseOnTouchOutside});
mCanceledOnTouchOutside = a.getBoolean(0, true);
a.recycle();
}
mCanceledOnTouchOutsideSet = true;
}
return mCanceledOnTouchOutside;
}
private static int getThemeResId(Context context, int themeId) {
if (themeId == 0) {
// If the provided theme is 0, then retrieve the dialogTheme from our theme
TypedValue outValue = new TypedValue();
if (context.getTheme().resolveAttribute(
R.attr.bottomSheetDialogTheme, outValue, true)) {
themeId = outValue.resourceId;
} else {
// bottomSheetDialogTheme is not provided; we default to our light theme
themeId = R.style.Theme_Design_Light_BottomSheetDialog;
}
}
return themeId;
}
private ViewPagerBottomSheetBehavior.BottomSheetCallback mBottomSheetCallback
= new ViewPagerBottomSheetBehavior.BottomSheetCallback() {
@Override
public void onStateChanged(@NonNull View bottomSheet,
@ViewPagerBottomSheetBehavior.State int newState) {
if (newState == ViewPagerBottomSheetBehavior.STATE_HIDDEN) {
dismiss();
}
}
@Override
public void onSlide(@NonNull View bottomSheet, float slideOffset) {
}
};
}
public class ViewPagerBottomSheetDialogFragment extends AppCompatDialogFragment {
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
return new ViewPagerBottomSheetDialog(getContext(), getTheme());
}
}
在Activity中使用
public class FourthActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fourth);
List<EmojiItem> data = new ArrayList<>();
String[] arr = new String[]{
"\uD83D\uDC4D", "❤️", "\uD83C\uDF89", "\uD83D\uDE02", "\uD83D\uDC4F", "\uD83D\uDE0E"
};
for (int i = 0; i < arr.length; i++) {
data.add(new EmojiItem(arr[i], i + 10, null));
}
// 多了setMaxHeight(1600)和setPeekHeight(1000)
findViewById(R.id.button4).setOnClickListener(v ->
ListBottomSheetDialog.builder(FourthActivity.this)
.setEmojiItemList(data)
.setMaxHeight(1600)
.setPeekHeight(1000)
.setOffscreenPageLimit(5)
.setEnableScroll(true)
.show(getSupportFragmentManager()));
}
}
结果如下，但是如果BottomSheetDialog官方将这个bug修复了，那么就不需要修改这么多的文件，而且自定义的ViewPagerBottomSheetBehavior只是复制了BottomSheetBehavior中的部分代码，可能存在其他问题尚未发现。
